G-LP Series

• Designed to sort plastic beverage bottles and household chemical containers in terms of color, material, shape and aging.

• Suitable for sorting washed, unwashed, labeled, unlabeled round bottles, mixed plastic bottles in bale form, loose plastic bottles and other bottles of various shapes.

• Designed for separating light colored PET bottles such as light blue, light green, light white and other plastic bottles.

• Support the separation of non-PET bottle materials, such as PP/PE/PC/PS/ABS/PVC/PA and other non-PET bottle sorting.

• Detect and remove non-PE bottles.

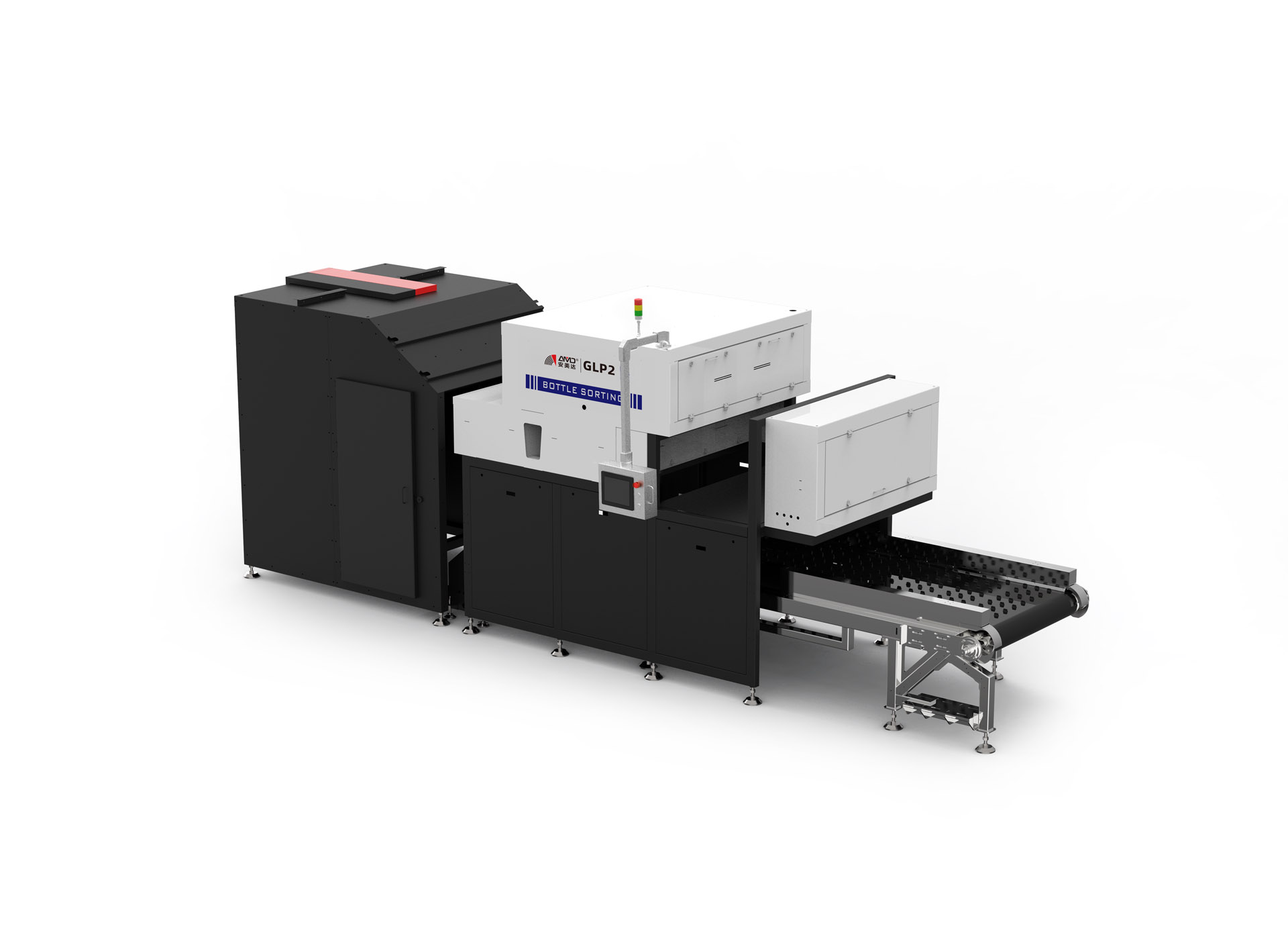

GLP2

  • Accuracy (%): > 99%
  • Throughput (T/H): 1,5 - 2,0
  • Air Consumption (m³/min): < 3,5
  • Power (KW): 7
  • Voltage / Frequency (V/Hz): AC380V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 3400
  • Dimension (mm): 7360 * 1870 * 2660

G-LPI2

  • Accuracy (%): > 99%
  • Throughput (T/H): 1,5 - 2,0
  • Air Consumption (m³/min): < 3,5
  • Power (KW): 10
  • Voltage / Frequency (V/Hz): AC380V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 3400
  • Dimension (mm): 7360 * 1870 * 2660

G-LP4

  • Accuracy (%): > 99%
  • Throughput (T/H): 4,5 - 6,0
  • Air Consumption (m³/min): < 6,5
  • Power (KW): 7.5
  • Voltage / Frequency (V/Hz): AC380V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 4600
  • Dimension (mm): 7360 * 2270 * 2550

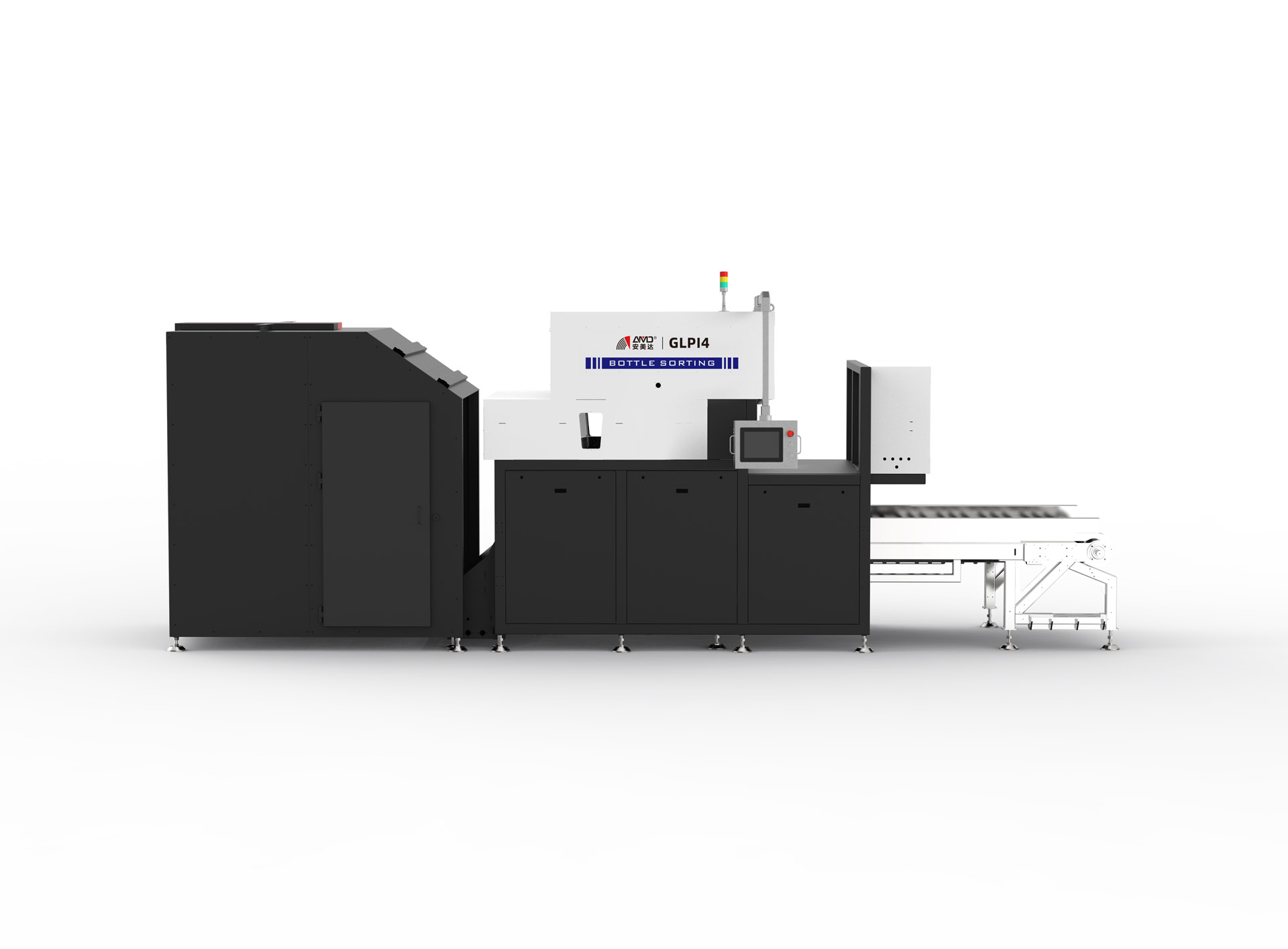

G-LPI4

  • Accuracy (%): > 99%
  • Throughput (T/H): 4,5 - 6,0
  • Air Consumption (m³/min): < 6,5
  • Power (KW): 14
  • Voltage / Frequency (V/Hz): AC380V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 4600
  • Dimension (mm): 7360 * 2270 * 2550

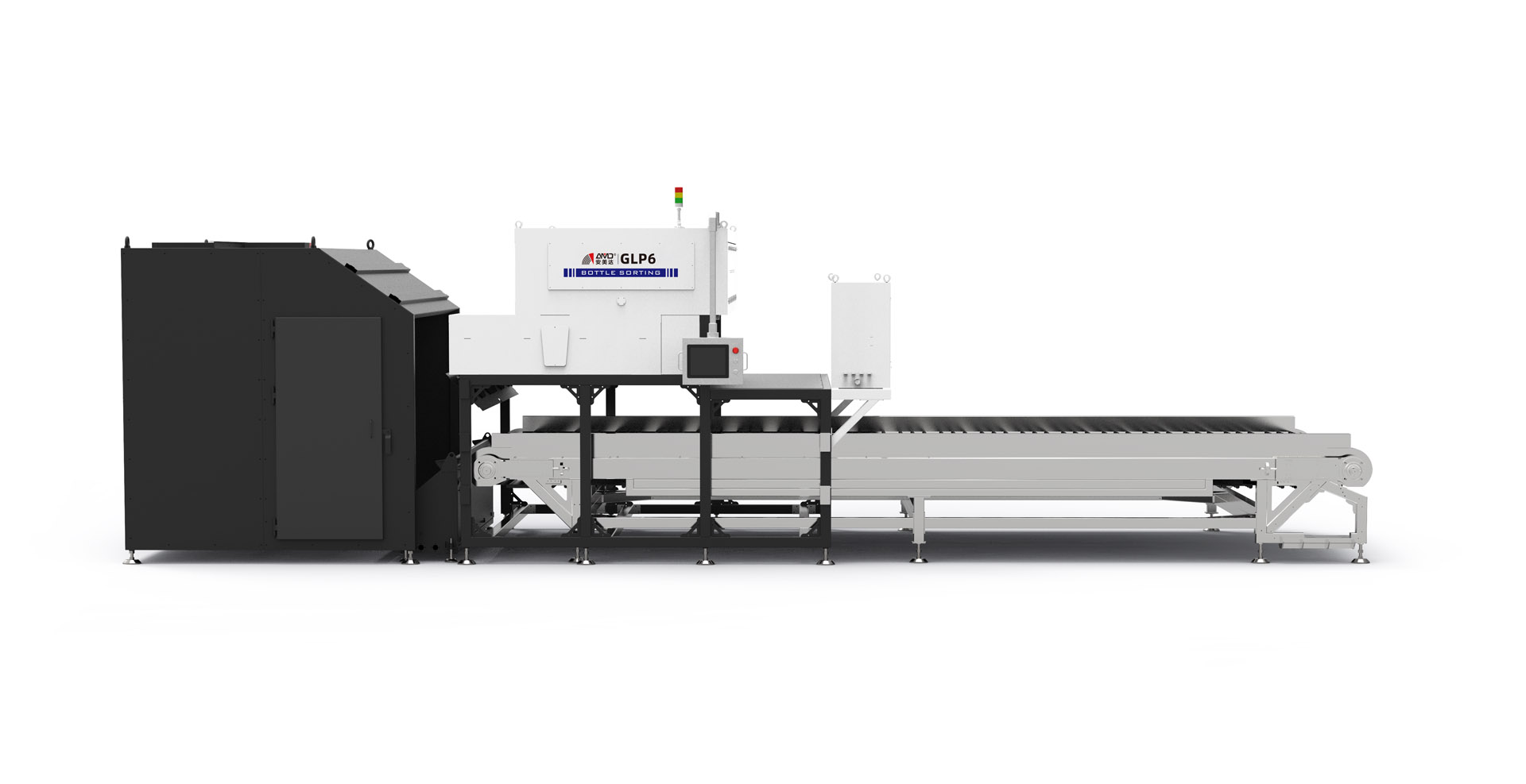

GLP6

  • Accuracy (%): > 99%
  • Throughput (T/H): 5,5 - 7
  • Air Consumption (m³/min): < 9
  • Power (KW): 12
  • Voltage / Frequency (V/Hz): AC380V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 5600
  • Dimension (mm): 7330 * 3570 * 2550

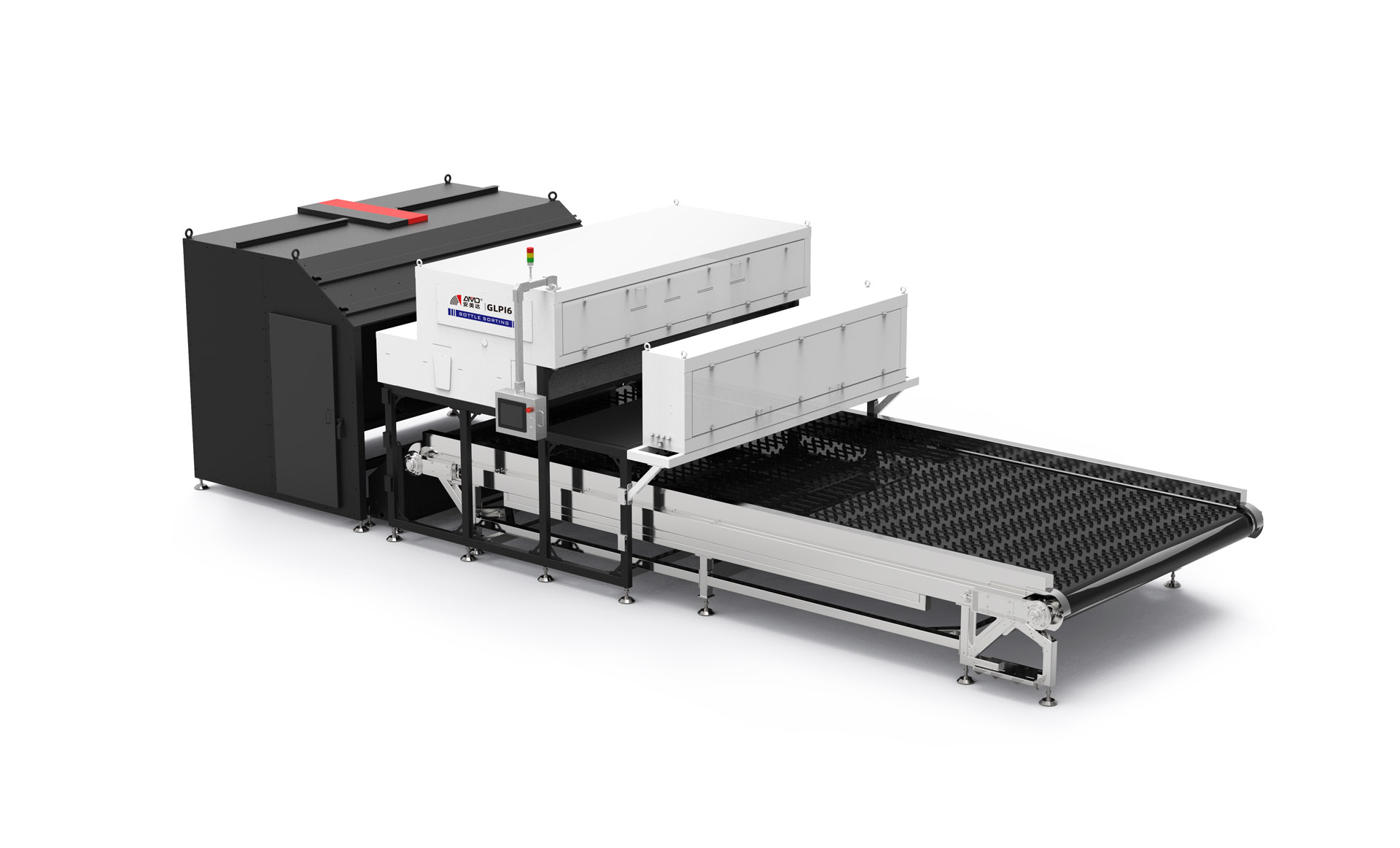

GLPI6

  • Accuracy (%): > 99%
  • Throughput (T/H): 5,5 - 7
  • Air Consumption (m³/min): < 9
  • Power (KW): 19.5
  • Voltage / Frequency (V/Hz): AC380V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 5600
  • Dimension (mm): 7330 * 3570 * 2550
Gl Series

• Identify and separate non-PET materials from the PET flakes, such as PVC/PC/HDPE/PP/ABS- Fr/PS/PA/POM/PMMA/PLA/non-ferrous metals, aluminum flakes, wood, rubber, silicon and other impurities. The GI polymer sorter is designed for purifying high-end PET flakes, ensuring top-quality recycling.

• Our NIR-based GI Series provides the flexibility of our visible light technology, enabling simultaneous sorting by color and polymer type.

• Support PET powder processing, effectively removing PPSU/TRITAN/PET-G low-temperature materials, as well as opaque and impurities.

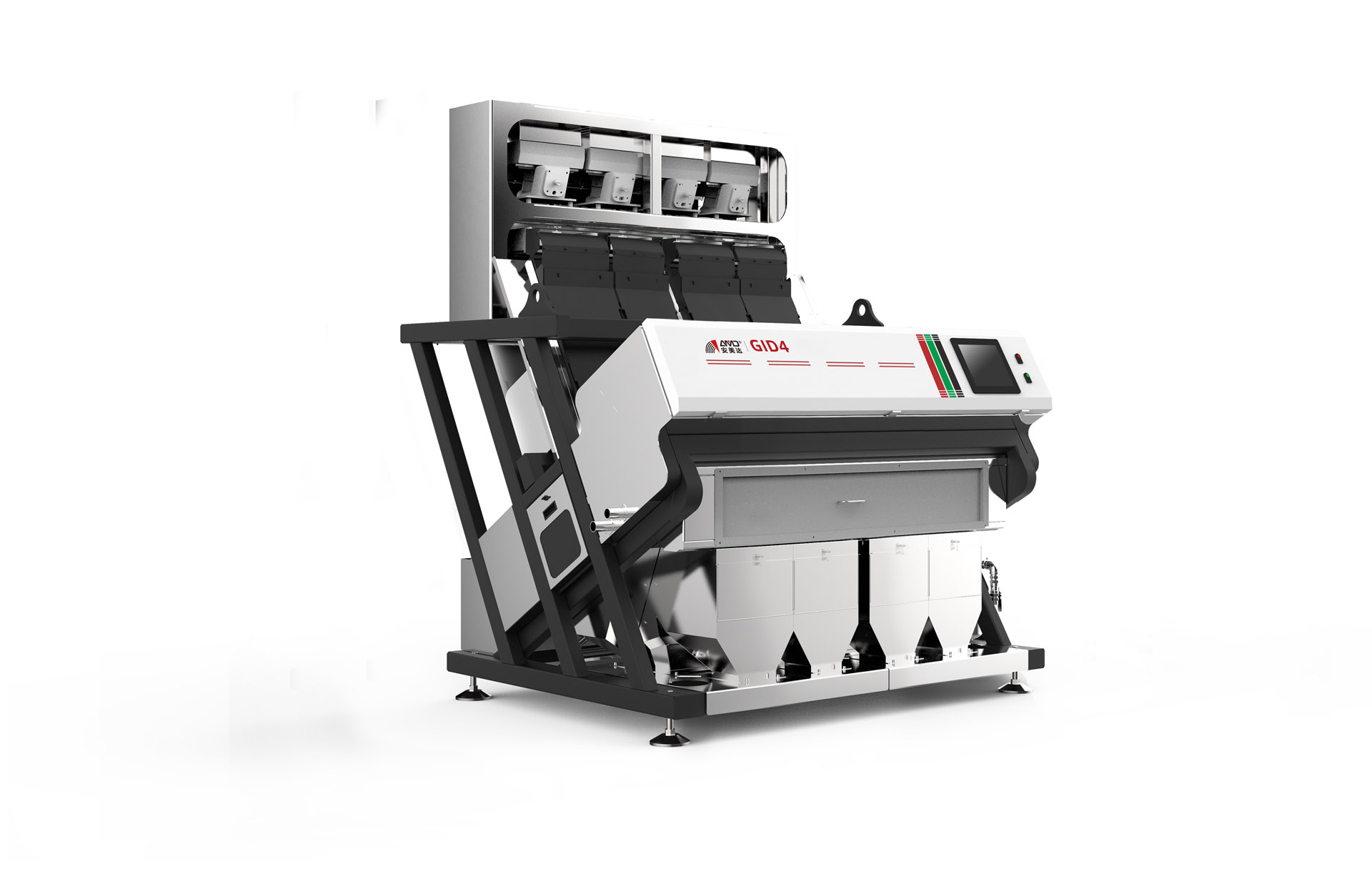

GID4

  • Accuracy (%): > 99%
  • Throughput (T/H): 0,8 - 3
  • Air Consumption (m³/min): < 2
  • Power (KW): 3.5
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1250 / 1300
  • Dimension (mm): 2150 * 1928 * 2385

GID5

  • Accuracy (%): > 99%
  • Throughput (T/H): 0,8 - 3,3
  • Air Consumption (m³/min): < 2.5
  • Power (KW): 5.5
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1750 / 1800
  • Dimension (mm): 2825 * 1928 * 2385

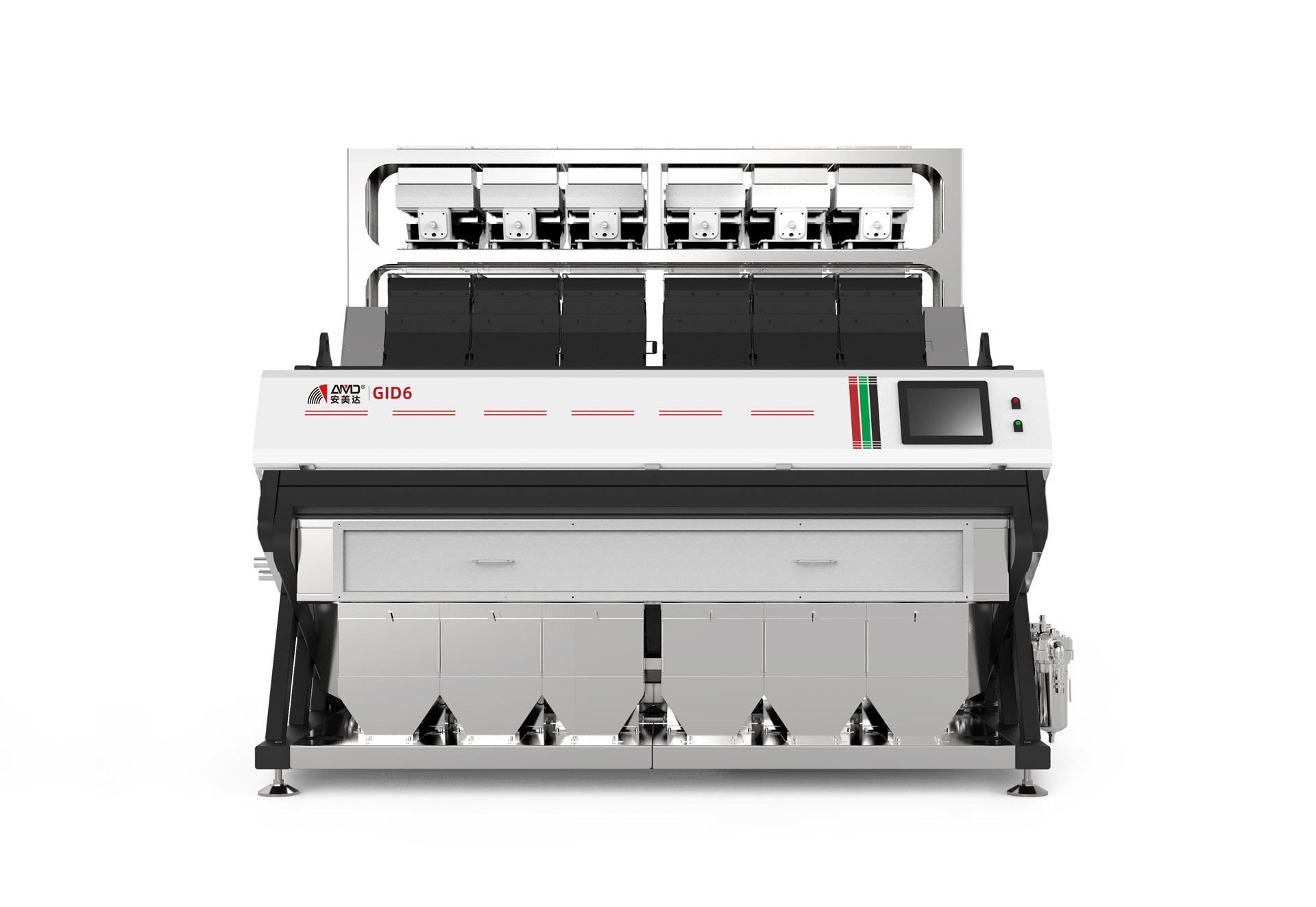

GID6

  • Accuracy (%): > 99%
  • Throughput (T/H): 1 - 4
  • Air Consumption (m³/min): < 3
  • Power (KW): 5.5
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1850 / 1900
  • Dimension (mm): 2825 * 1928 * 2385

GID7

  • Accuracy (%): > 99%
  • Throughput (T/H): 1,8 - 5,3
  • Air Consumption (m³/min): < 3.5
  • Power (KW): 6.5
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 2200 / 2250
  • Dimension (mm): 3518 * 1928 * 2385

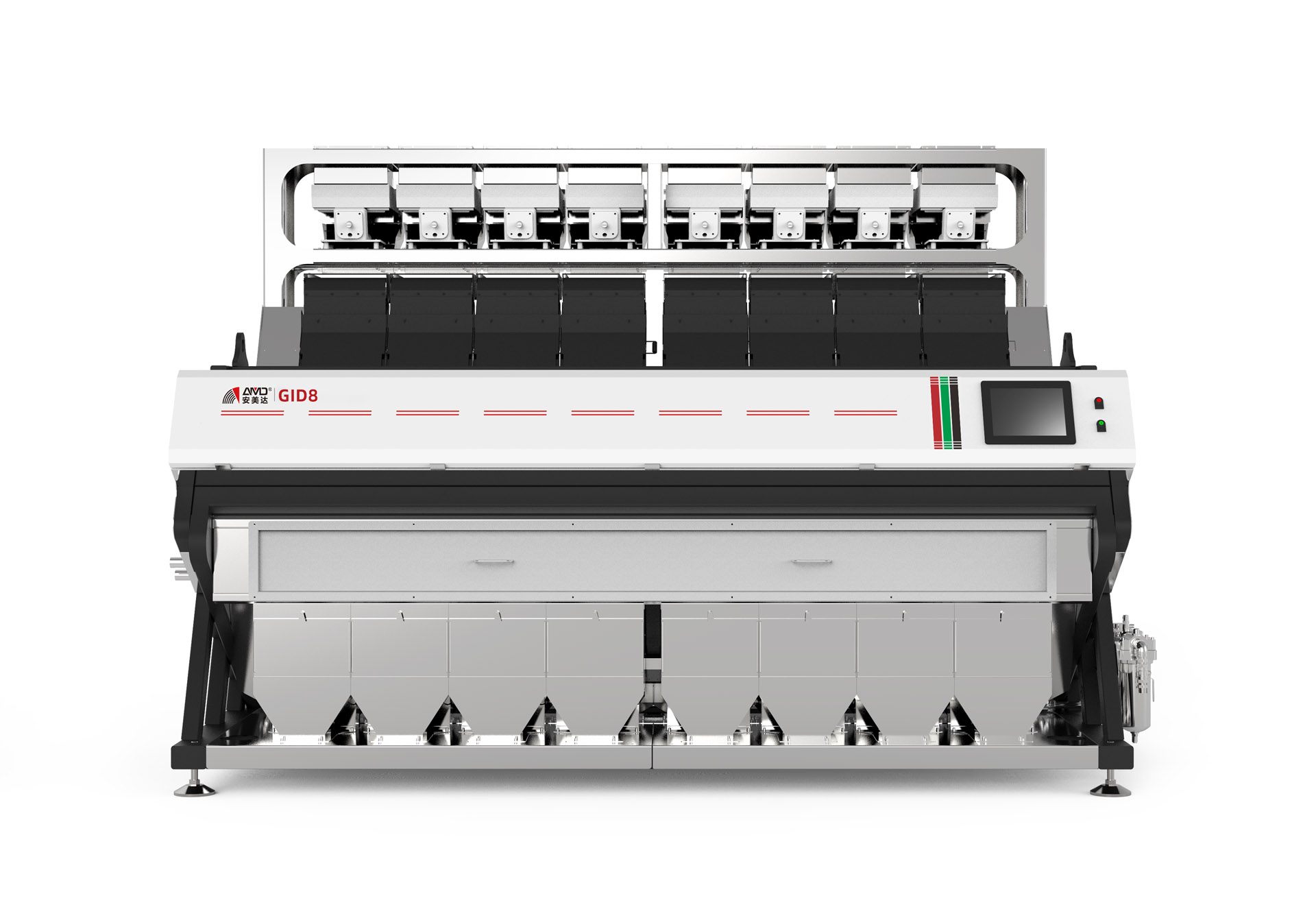

GID8

  • Accuracy (%): > 99%
  • Throughput (T/H): 2 - 6
  • Air Consumption (m³/min): < 4
  • Power (KW): 6.5
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 2300 / 2350
  • Dimension (mm): 3518 * 1928 * 2385
Gl MAX Series

• Separation of HDPE and PP flakes.

• Separation of transparent and white HDPE flakes.

• Purification of PP flakes, removing non-PP materials.

• Purification of PE flakes, removing non-PE materials.

• Purification of PMMA flakes, removing non-PMMA materials.

• Purification of PC/PC alloy flakes, removing non-PC/PC alloy materials.

• Purification of single-material products sinking and floating in brine (salt) solution at various concentrations, such as PET-G, PC/alloy, PMMA, PVC, POM, ABS/PS/PA, etc.

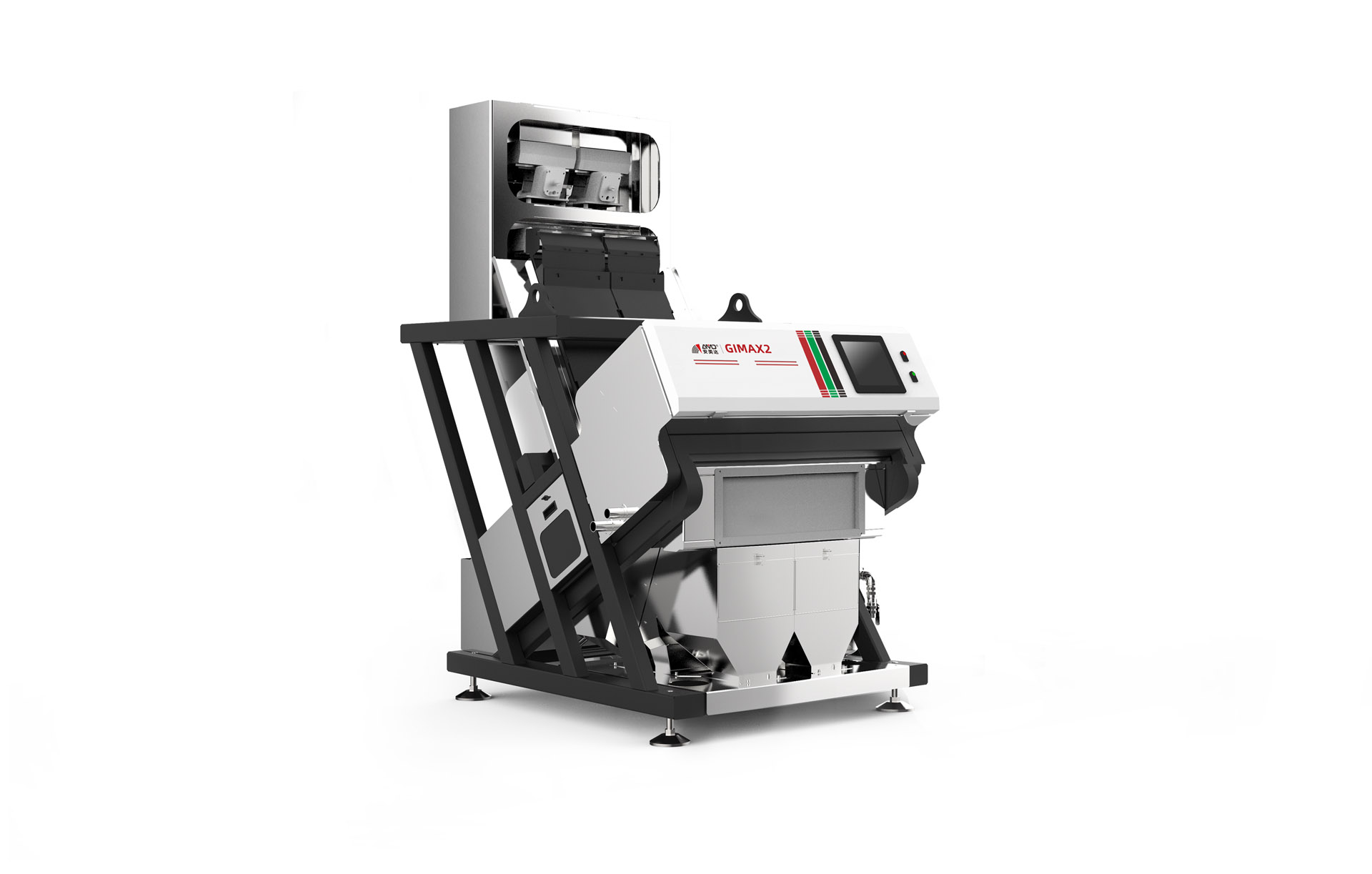

GIMAX2

  • Accuracy (%): > 99%
  • Throughput (T/H): 0,6 - 2,3
  • Air Consumption (m³/min): < 2
  • Power (KW): 3.5
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1250 / 1300
  • Dimension (mm): 2150 * 1928 * 2385

GIMAX4

  • Accuracy (%): > 99%
  • Throughput (T/H): 0,8 - 3
  • Air Consumption (m³/min): < 2
  • Power (KW): 4.2
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1250 / 1300
  • Dimension (mm): 2150 * 1928 * 2385

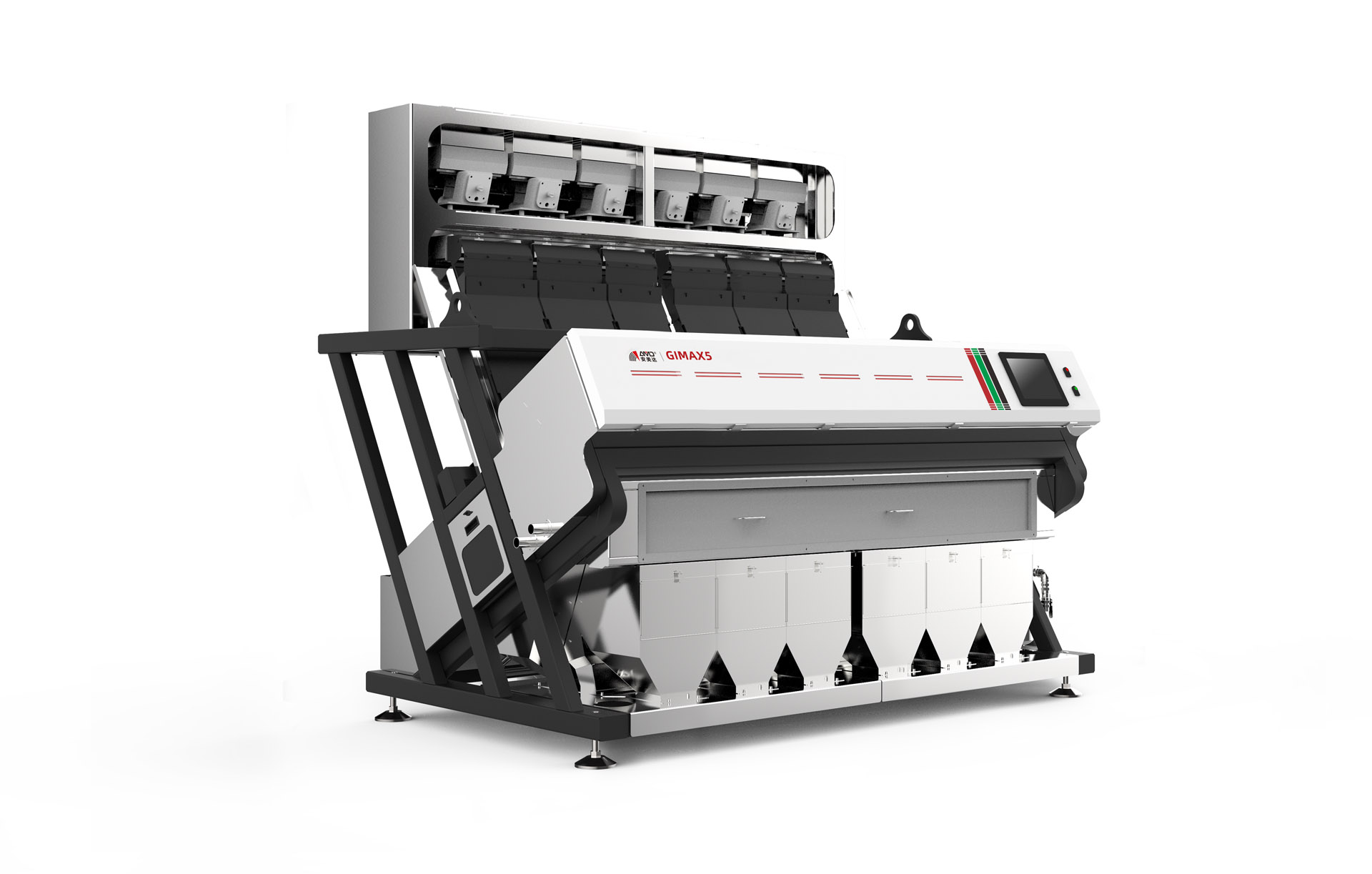

GIMAX5

  • Accuracy (%): > 99%
  • Throughput (T/H): 0,8 - 3,3
  • Air Consumption (m³/min): < 2.5
  • Power (KW): 6.2
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1750 / 1800
  • Dimension (mm): 2825 * 1928 * 2385

GIMAX6

  • Accuracy (%): > 99%
  • Throughput (T/H): 1 - 4
  • Air Consumption (m³/min): < 3
  • Power (KW): 6.2
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1850 / 1900
  • Dimension (mm): 2825 * 1928 * 2385

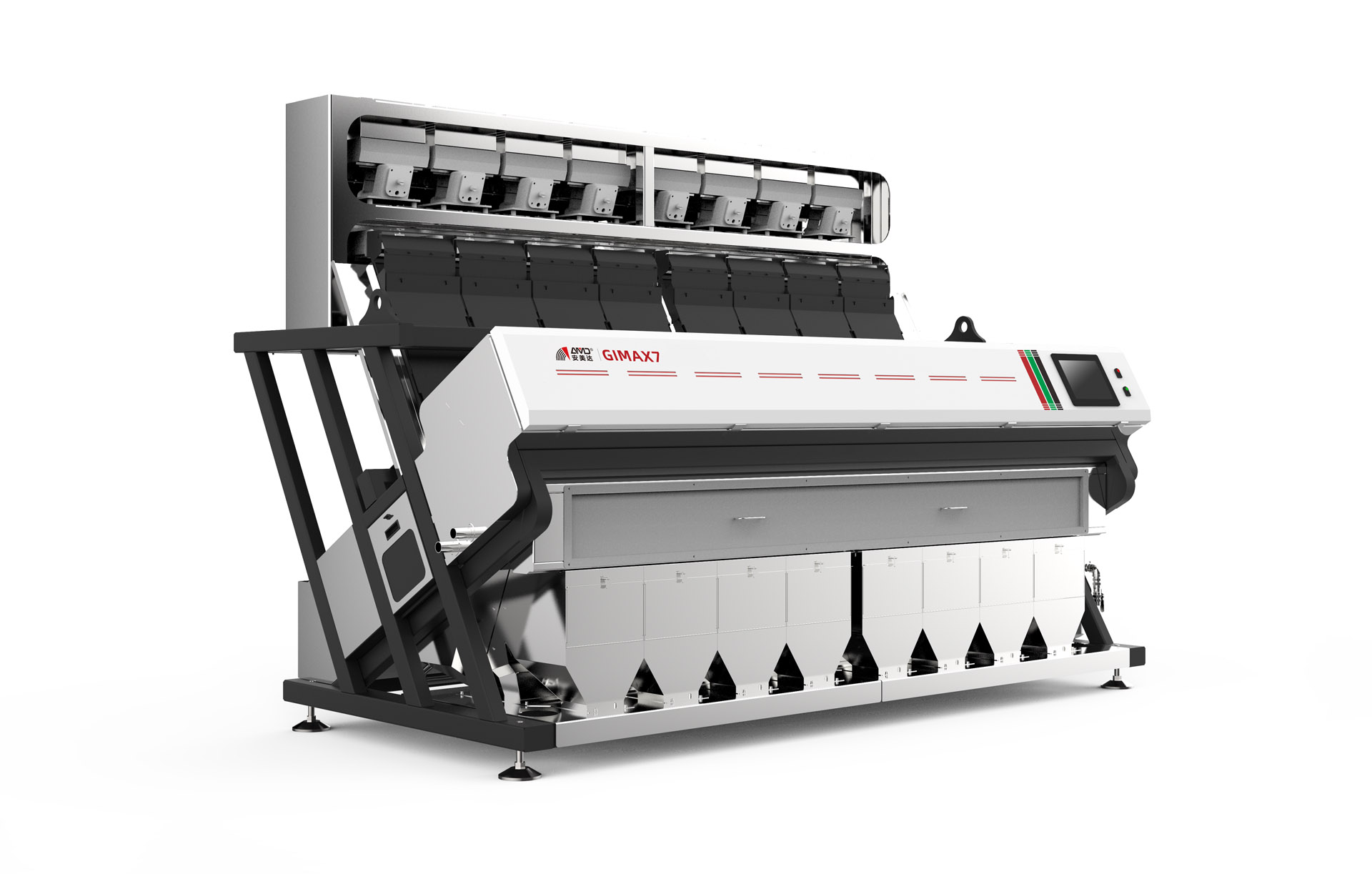

GIMAX7

  • Accuracy (%): > 99%
  • Throughput (T/H): 1,8 - 5,3
  • Air Consumption (m³/min): < 3,5
  • Power (KW): 8.2
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 2200 / 2250
  • Dimension (mm): 3518 * 1928 * 2385

GIMAX8

  • Accuracy (%): > 99%
  • Throughput (T/H): 2 - 6
  • Air Consumption (m³/min): < 4
  • Power (KW): 8.2
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 2300 / 2350
  • Dimension (mm): 3518 * 1928 * 2385
GU Series

• This machine is specially designed for separating the aged flakes that cannot be identified by the naked eye, suitable for high-end PET flake processing lines.

• It can be used to separate fluorescent and light yellow flakes from transparent and white HDPE flakes.

• It can also be used to detect and remove aged flakes from other polymer flakes.


U4

  • Accuracy (%): > 90%
  • Throughput (T/H): 1,2 - 2
  • Air Consumption (m³/min): < 2
  • Power (KW): 2.9
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1150
  • Dimension (mm): 2033 * 1829 * 1887

U6

  • Accuracy (%): > 90%
  • Throughput (T/H): 1,5 - 2,5
  • Air Consumption (m³/min): < 3
  • Power (KW): 4.4
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1450
  • Dimension (mm): 2663 * 1829 * 1887

U8

  • Accuracy (%): > 90%
  • Throughput (T/H): 2,2 - 3,2
  • Air Consumption (m³/min): < 4
  • Power (KW): 5.9
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1700
  • Dimension (mm): 3293 * 1829 * 1887

U10

  • Accuracy (%): > 90%
  • Throughput (T/H): 3 - 4
  • Air Consumption (m³/min): < 5
  • Power (KW): 7.3
  • Voltage / Frequency (V/Hz): AC220V/50HZ
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 2050
  • Dimension (mm): 3933 * 1829 * 1887
GV Series

• General color sorting includes single-sided color, double-sided color plastic flakes.

• Detect and remove the opaque or other colored flakes from high quality clear or blue-white flakes.

• Detect and remove the opaque and black flakes from the mixed color flakes.

• Detect and remove black materials from PC alloy, PC/PP/PS/ABS and other mixtures.

• Separation of clear and white HDPE flakes and classification of different color flakes from mixed ground HDPE scraps.

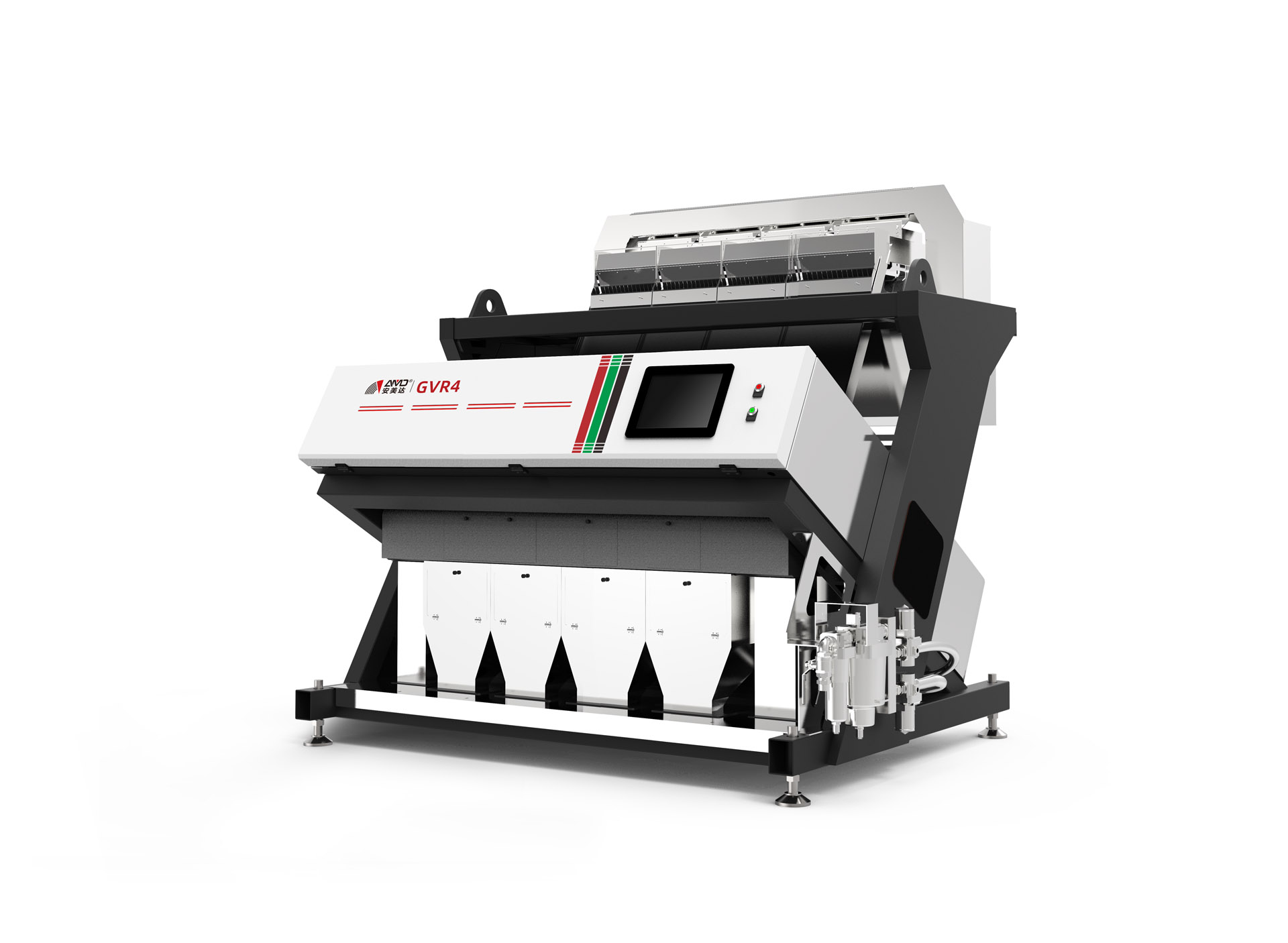

V4

  • Throughput (t/h): > 1.5 - 3
  • Air Consumption (m³/min) < 2
  • Power (KW): 2.9
  • Voltage / Frequency (V/Hz): 220 / 50
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1150
  • Dimension (mm): 2033 * 1829 * 1887

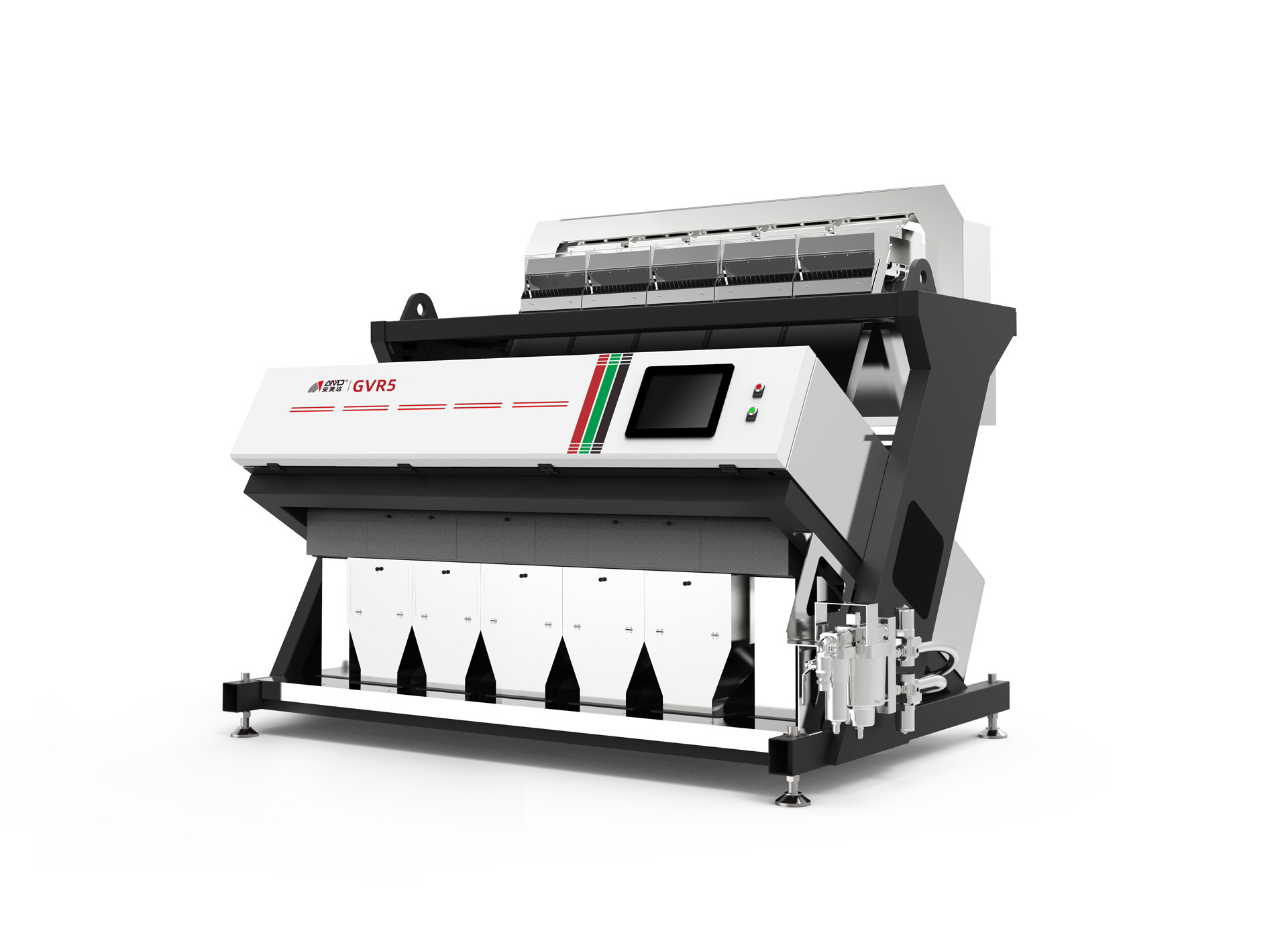

V5

  • Throughput (t/h): > 1.8 - 3.5
  • Air Consumption (m³/min) < 2.5
  • Power (KW): 3.7
  • Voltage / Frequency (V/Hz): 220 / 50
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1300
  • Dimension (mm): 2348 * 1829 * 1887

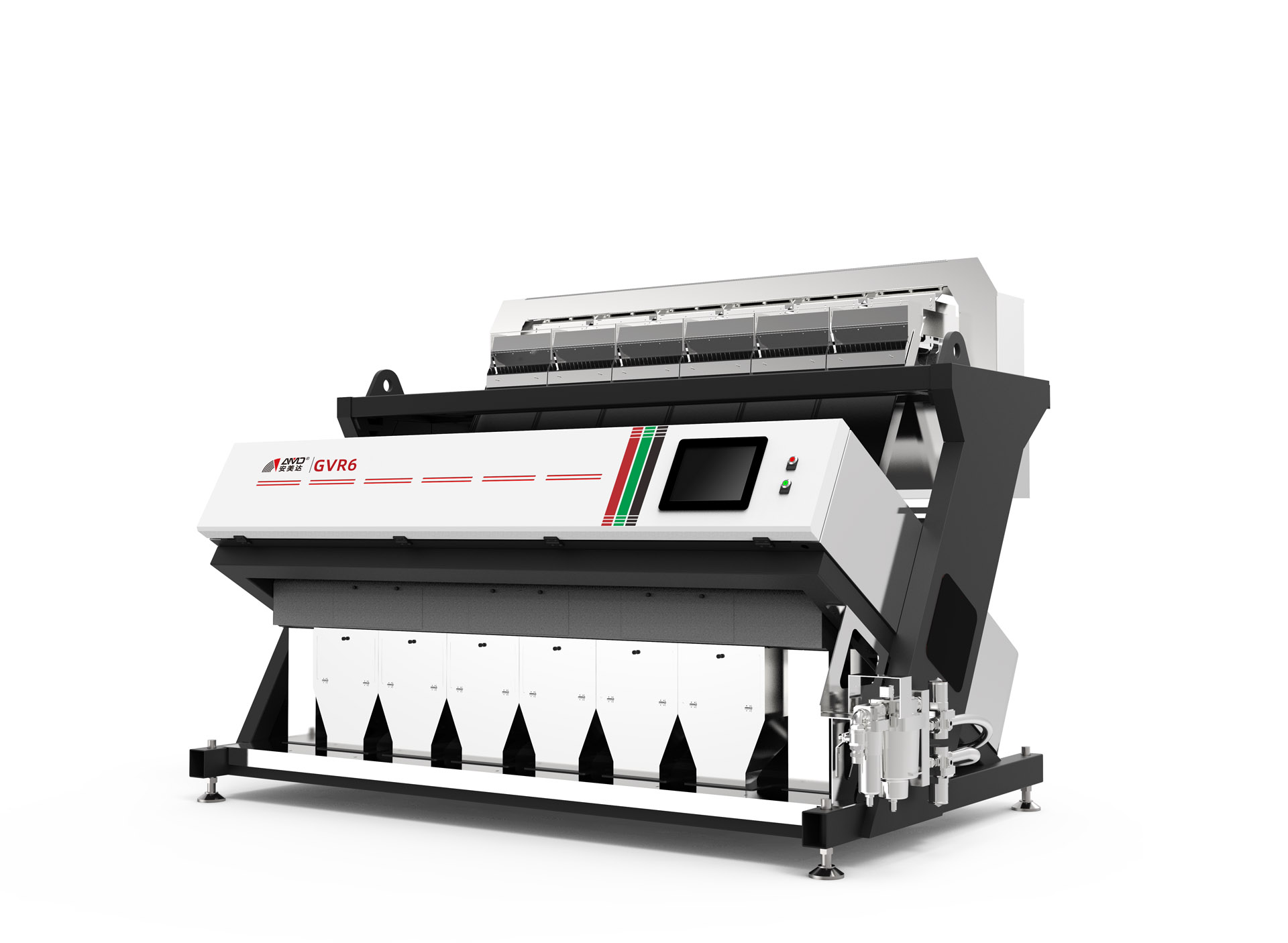

V6

  • Throughput (t/h): > 2 - 4
  • Air Consumption (m³/min) < 3
  • Power (KW): 4.4
  • Voltage / Frequency (V/Hz): 220 / 50
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1450
  • Dimension (mm): 2663 * 1829 * 1887

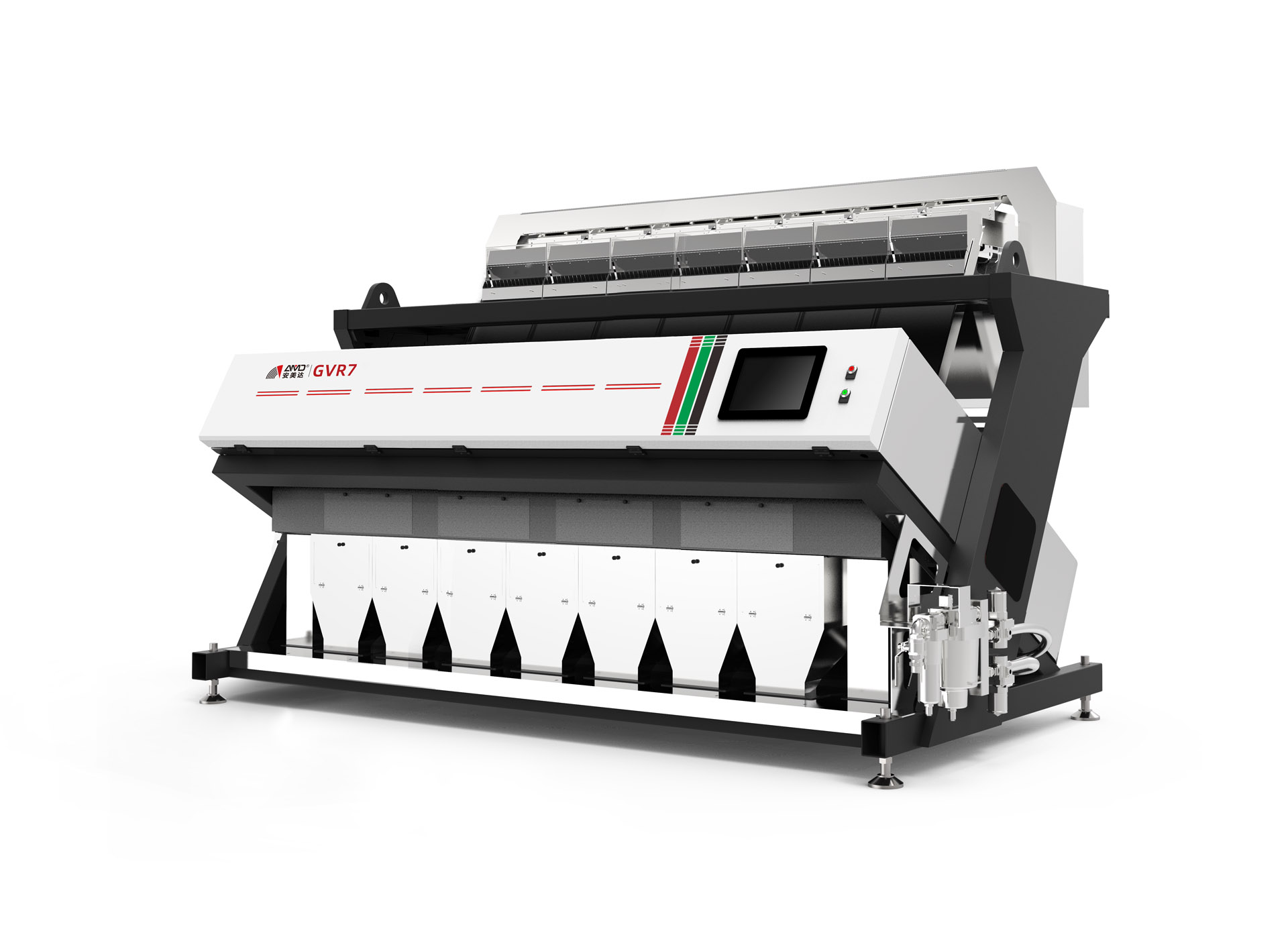

V7

  • Throughput (t/h): > 2.8 - 5.6
  • Air Consumption (m³/min) < 3.5
  • Power (KW): 5.2
  • Voltage / Frequency (V/Hz): 220 / 50
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 1600
  • Dimension (mm): 2978 * 1829 * 1887

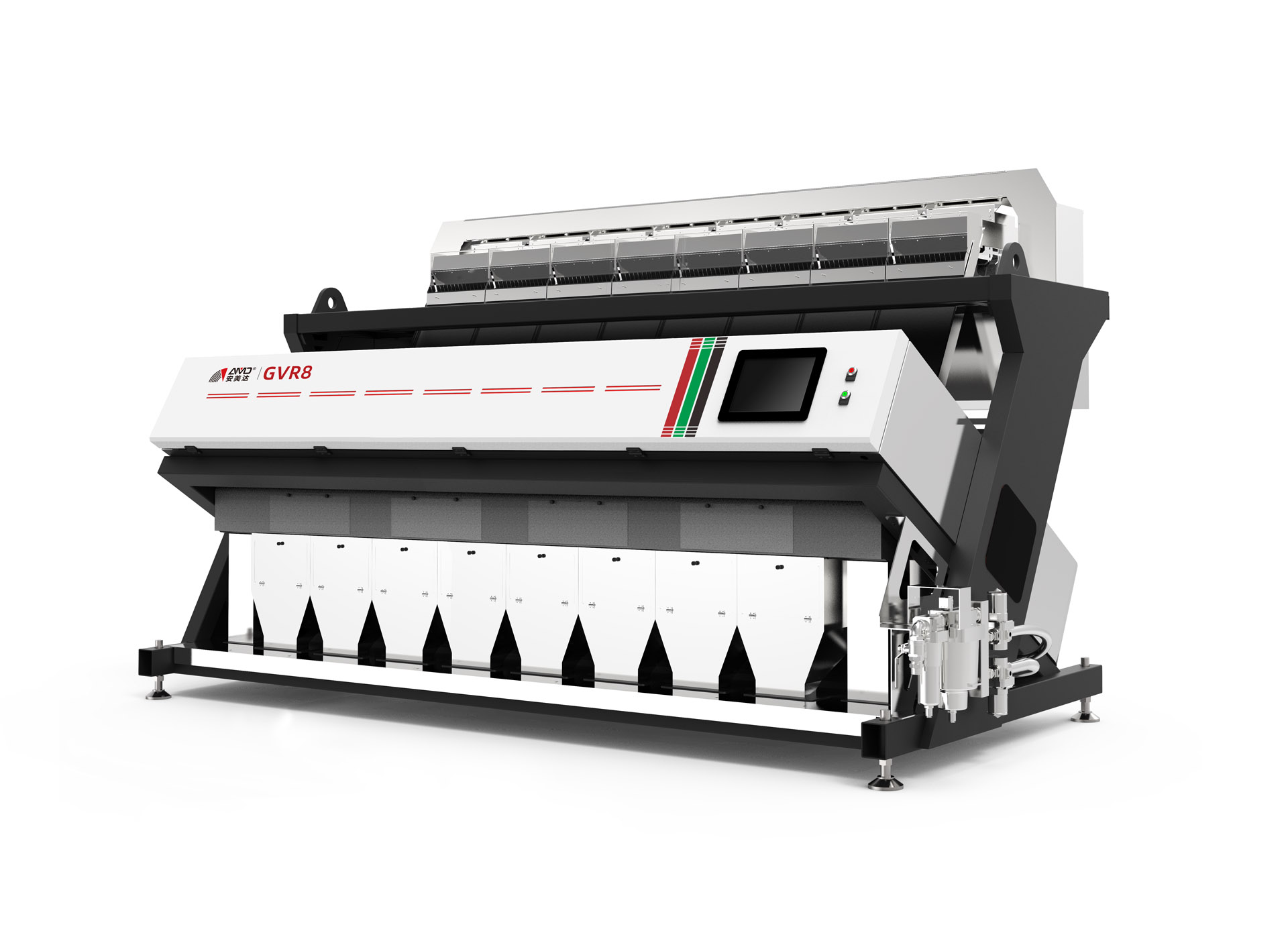

V8

  • Throughput (t/h): > 4 - 8
  • Air Consumption (m³/min) < 5
  • Power (KW): 7.3
  • Voltage / Frequency (V/Hz): 220 / 50
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 2050
  • Dimension (mm): 3293 * 1829 * 1887

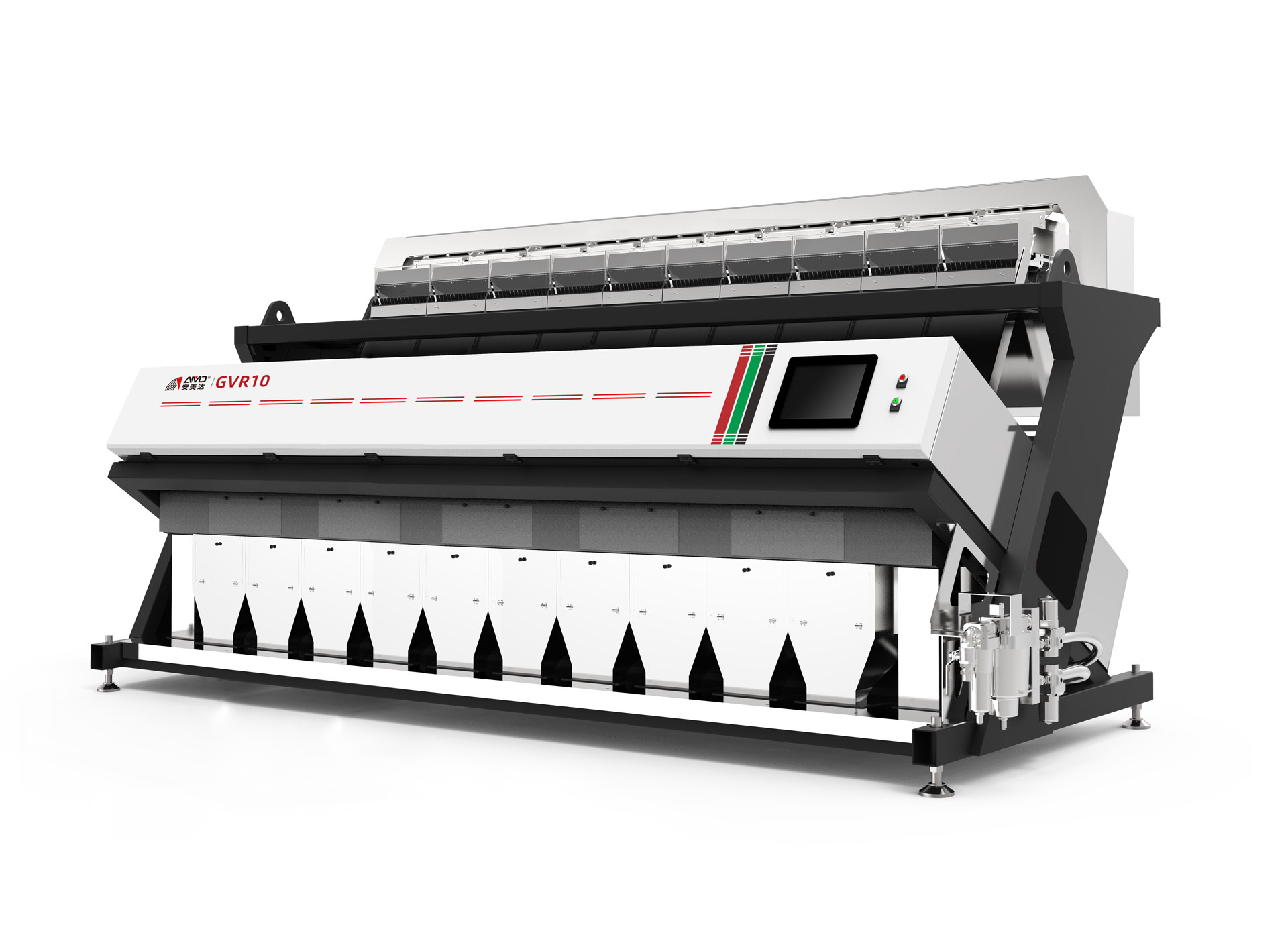

V10

  • Throughput (t/h): > 5 - 10
  • Air Consumption (m³/min) < 6
  • Power (KW): 8.8
  • Voltage / Frequency (V/Hz): 220 / 50
  • Air Pressure (Mpa): 0.6 ~ 0.8
  • Weight (KW): 2400
  • Dimension (mm): 3933 * 1829 * 1887
Recycling

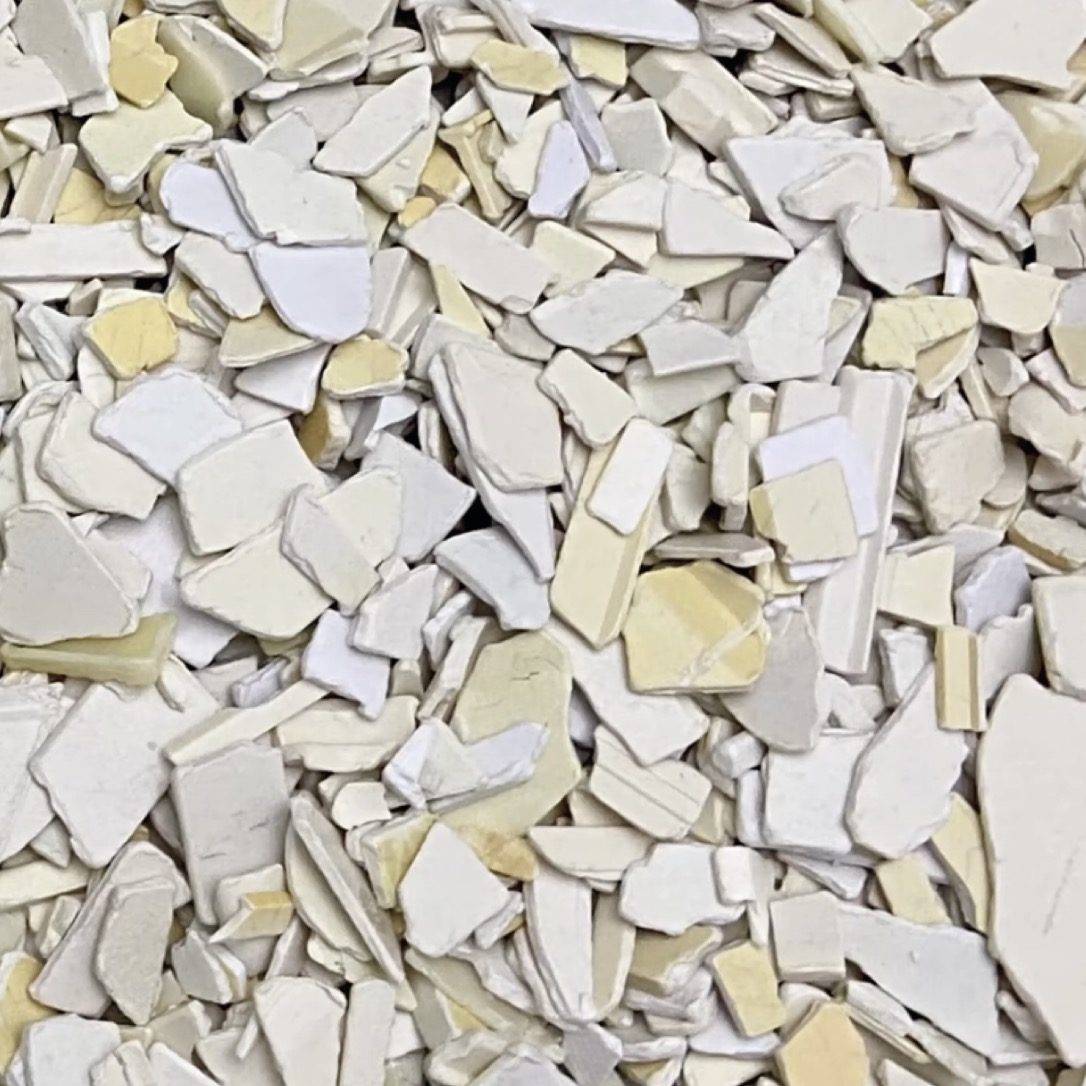

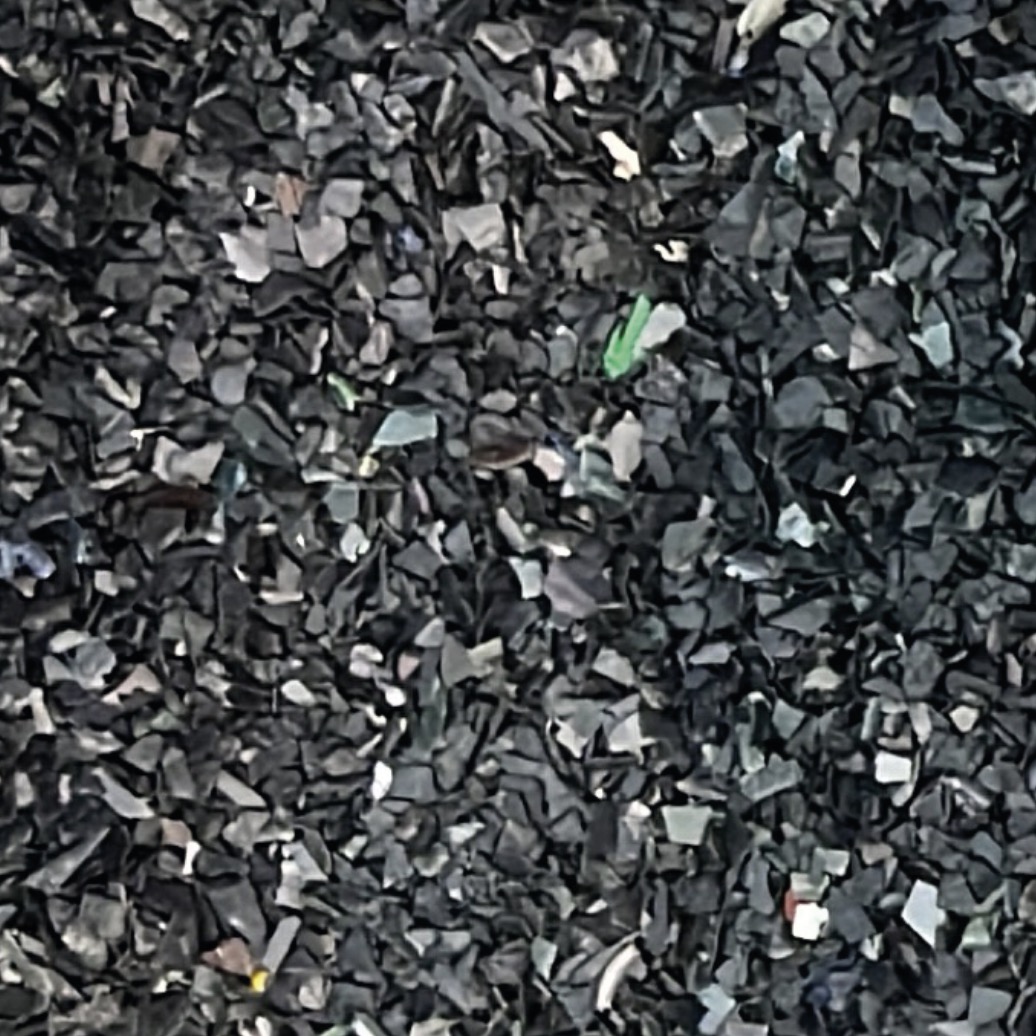

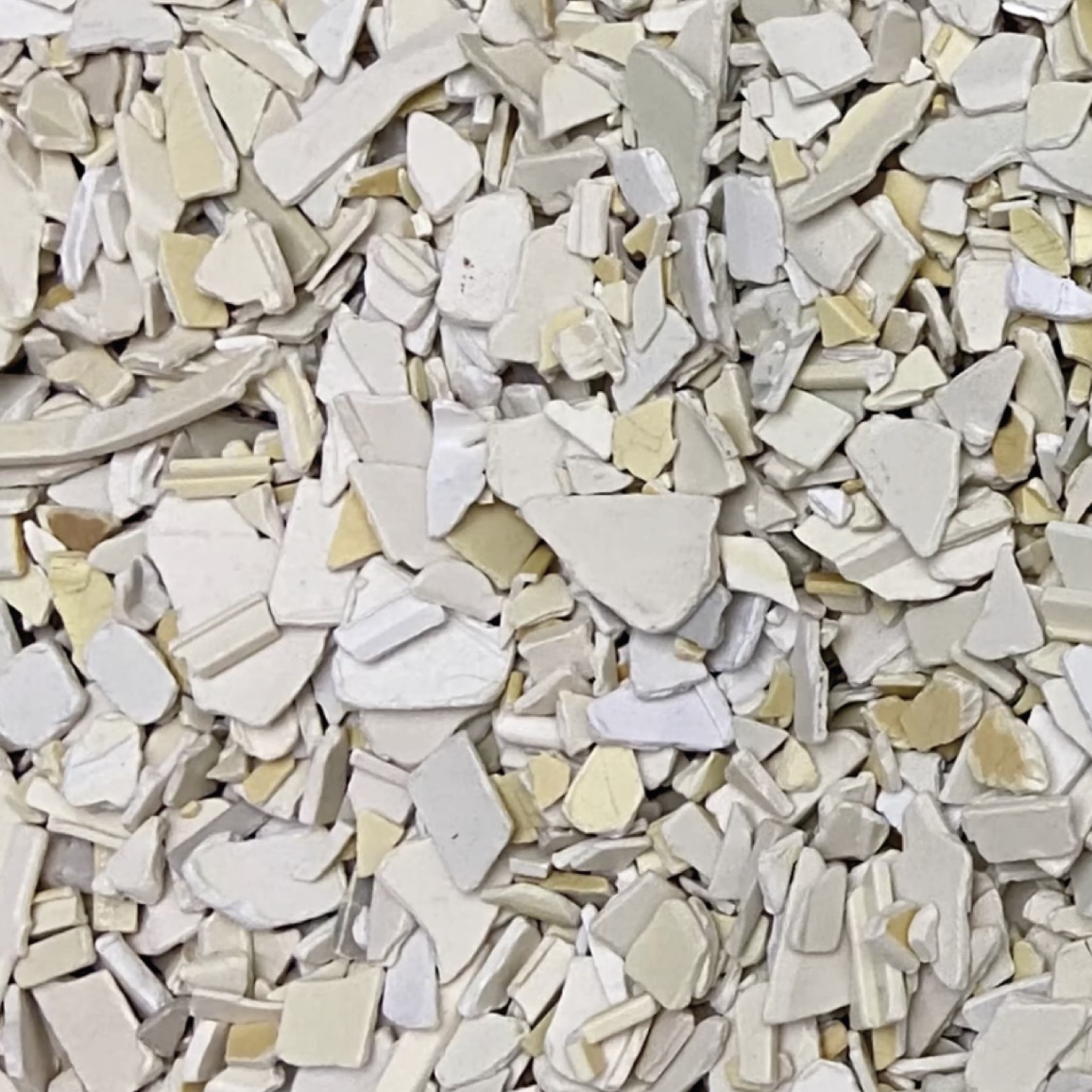

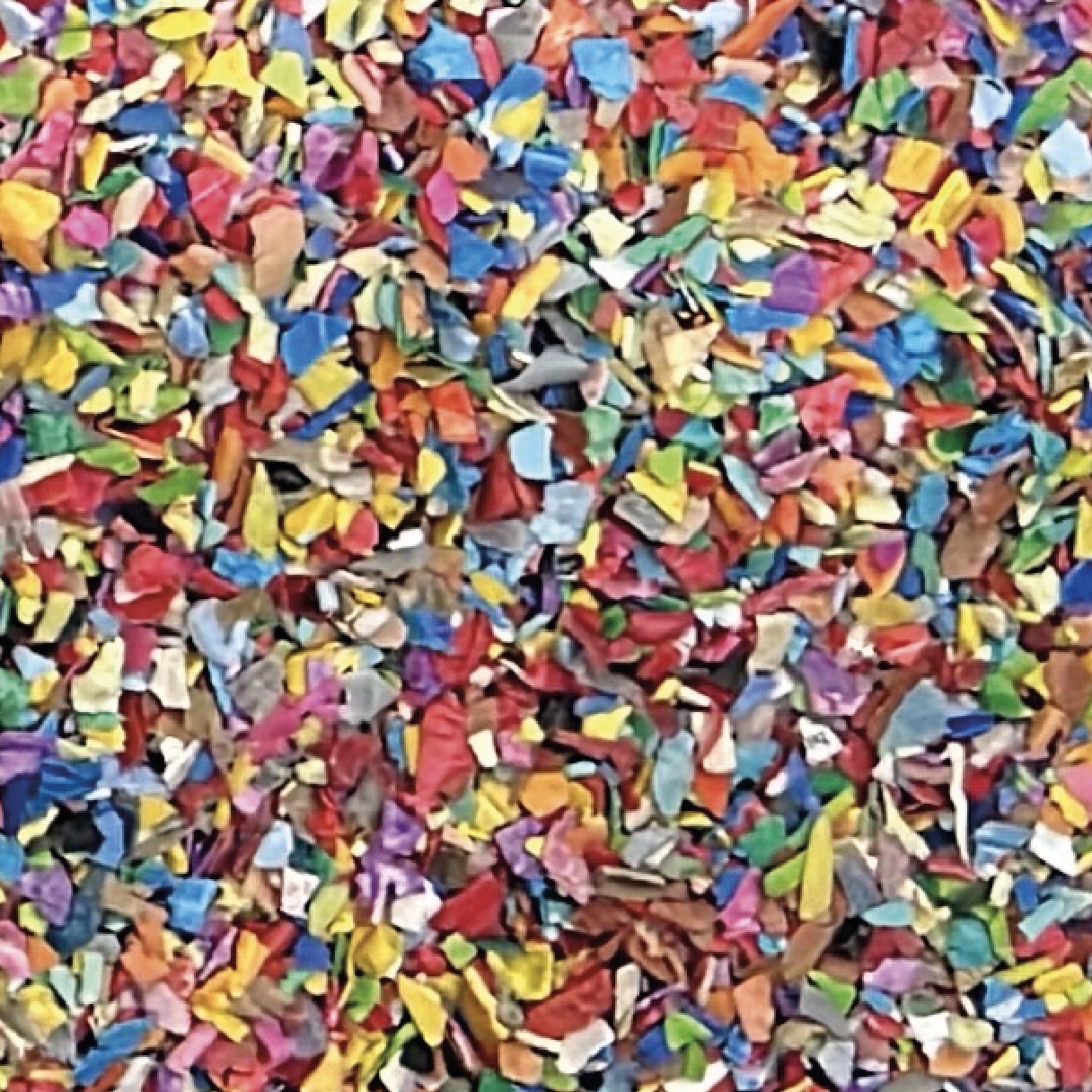

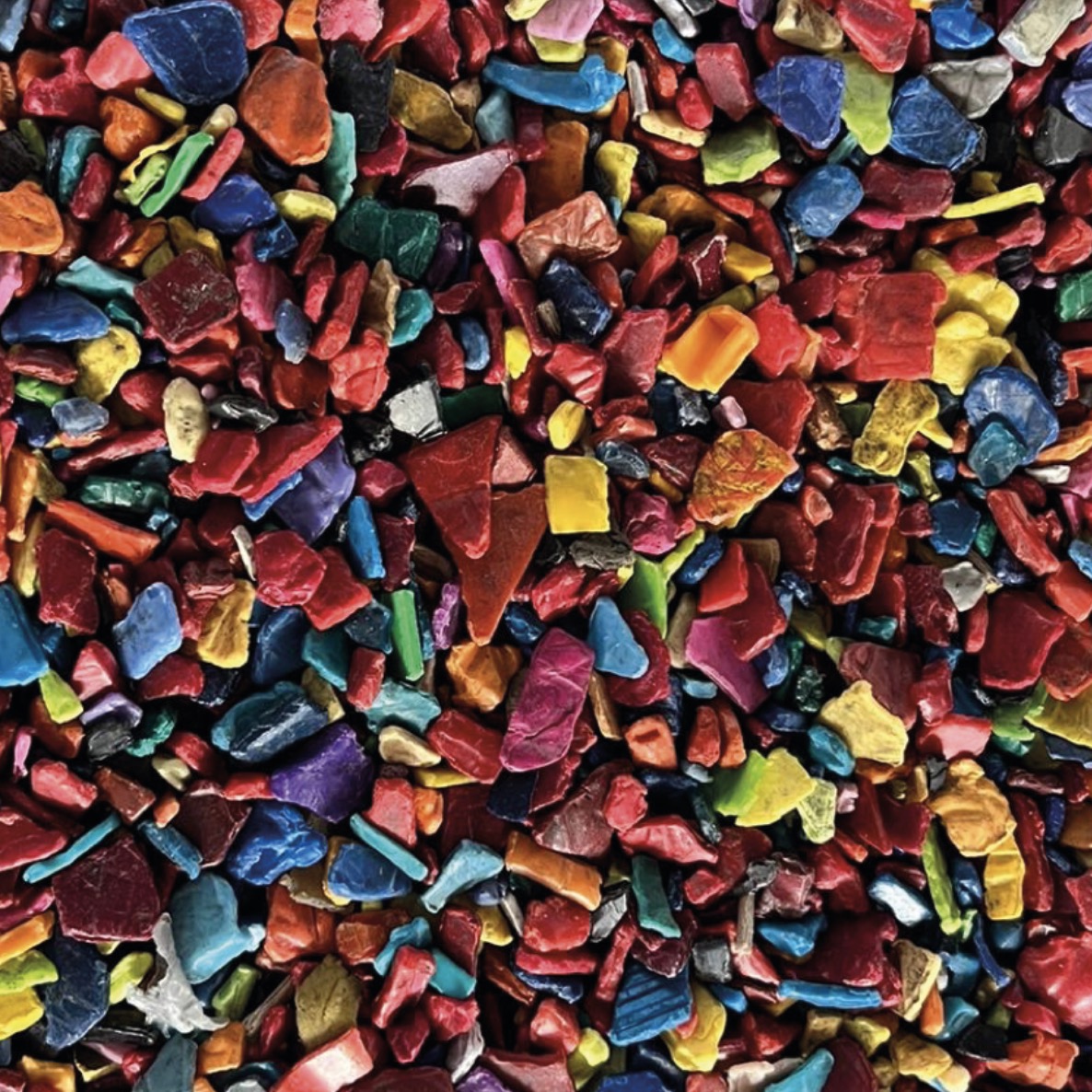

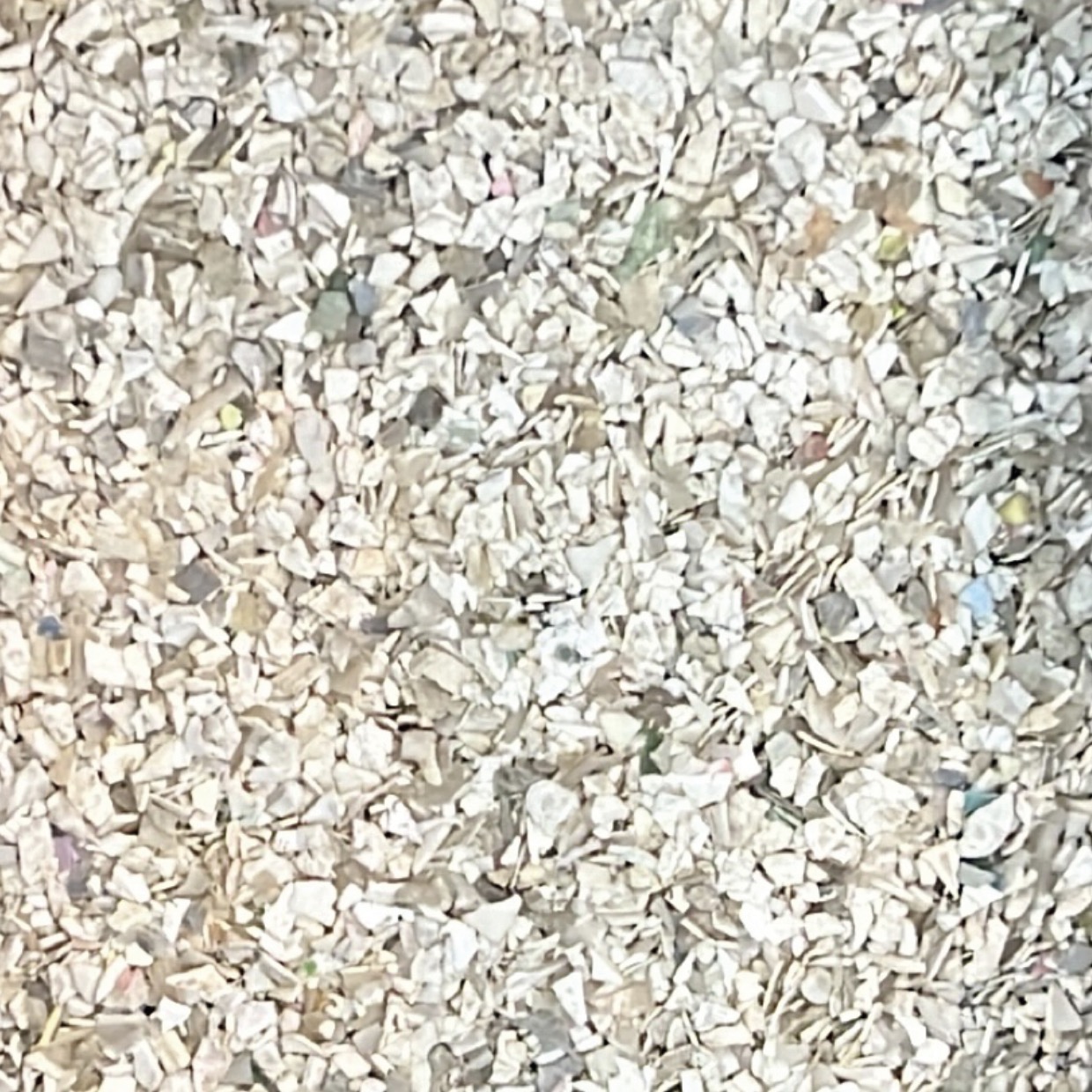

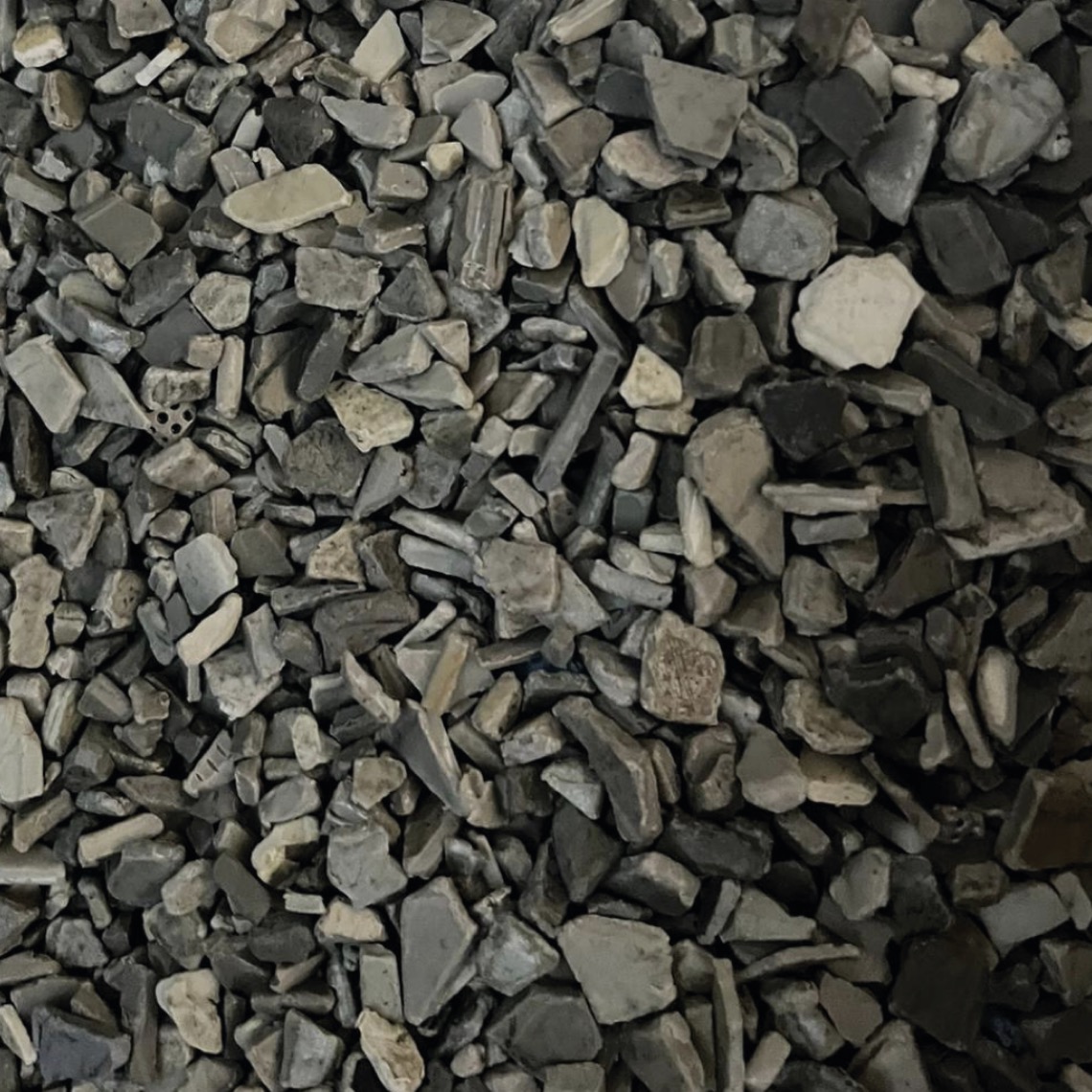

ABS Accept

ABS Reject

ABS Accept

PS Reject

PET Reject

PET 1st Accept

PET 2st Accept

PET 3rd Accept

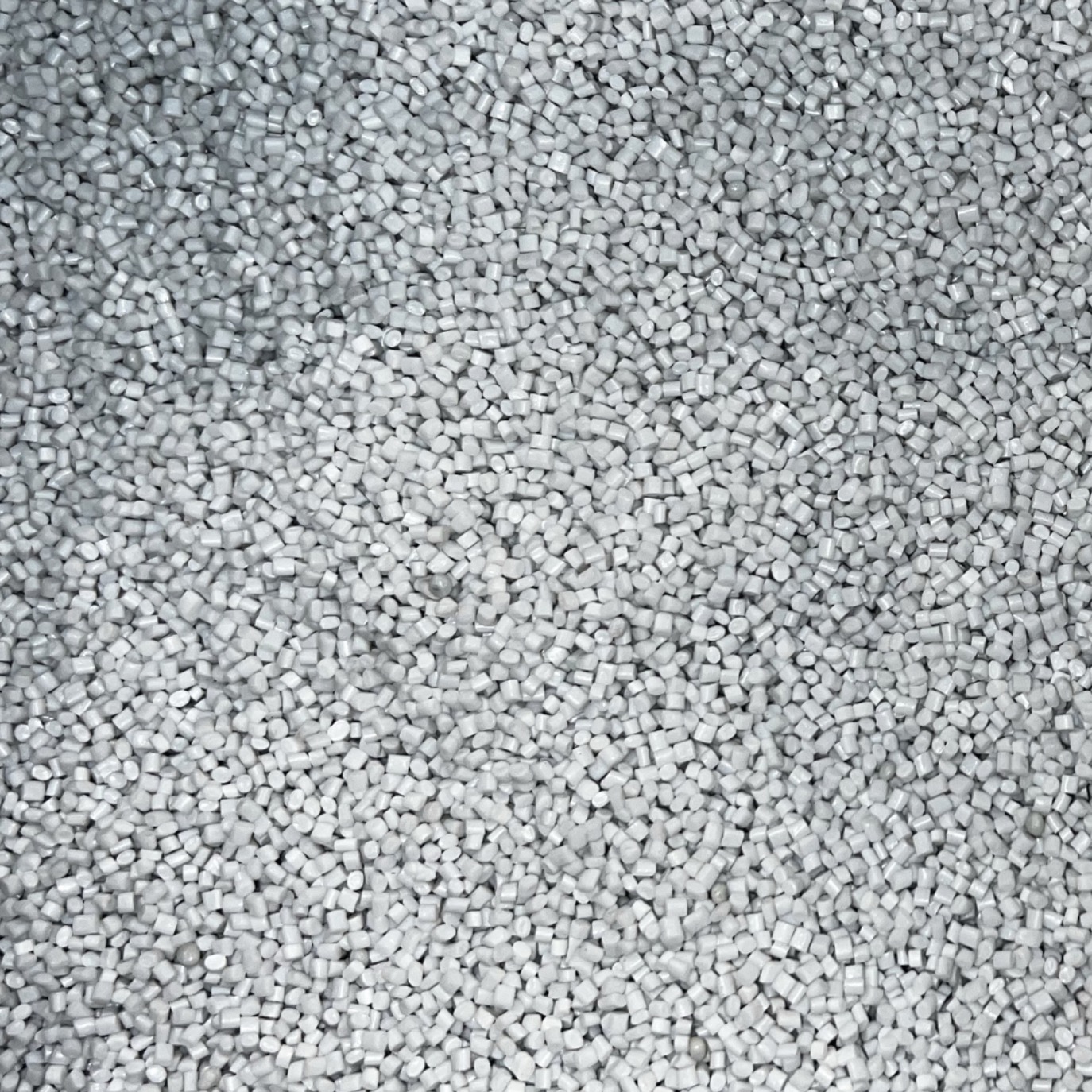

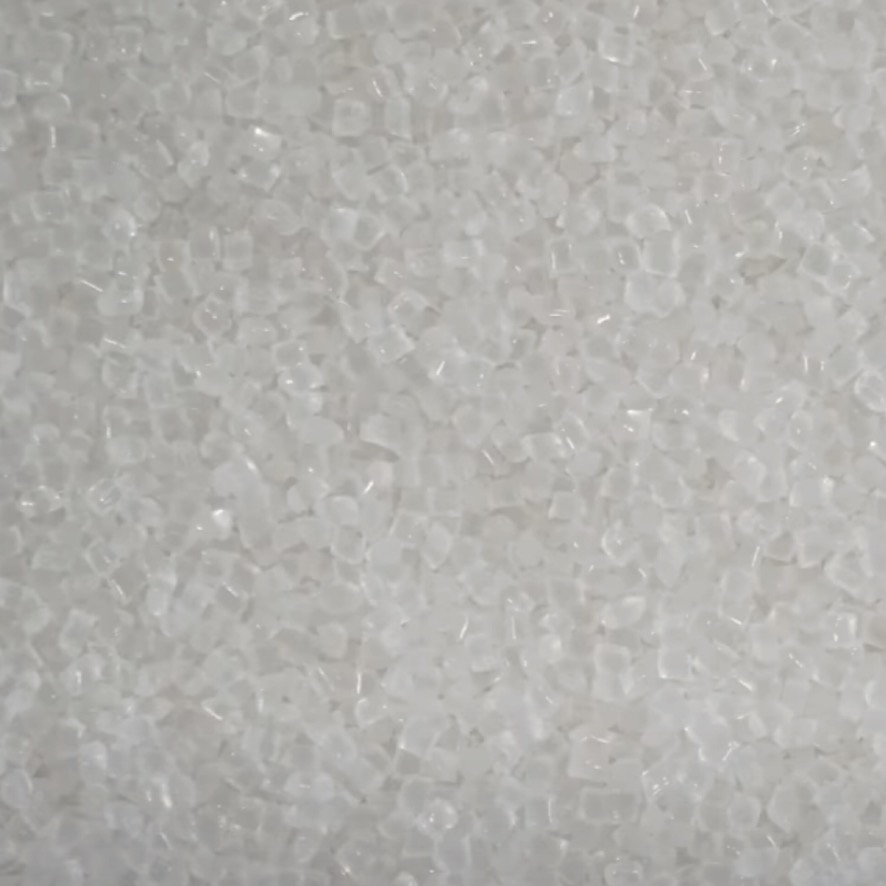

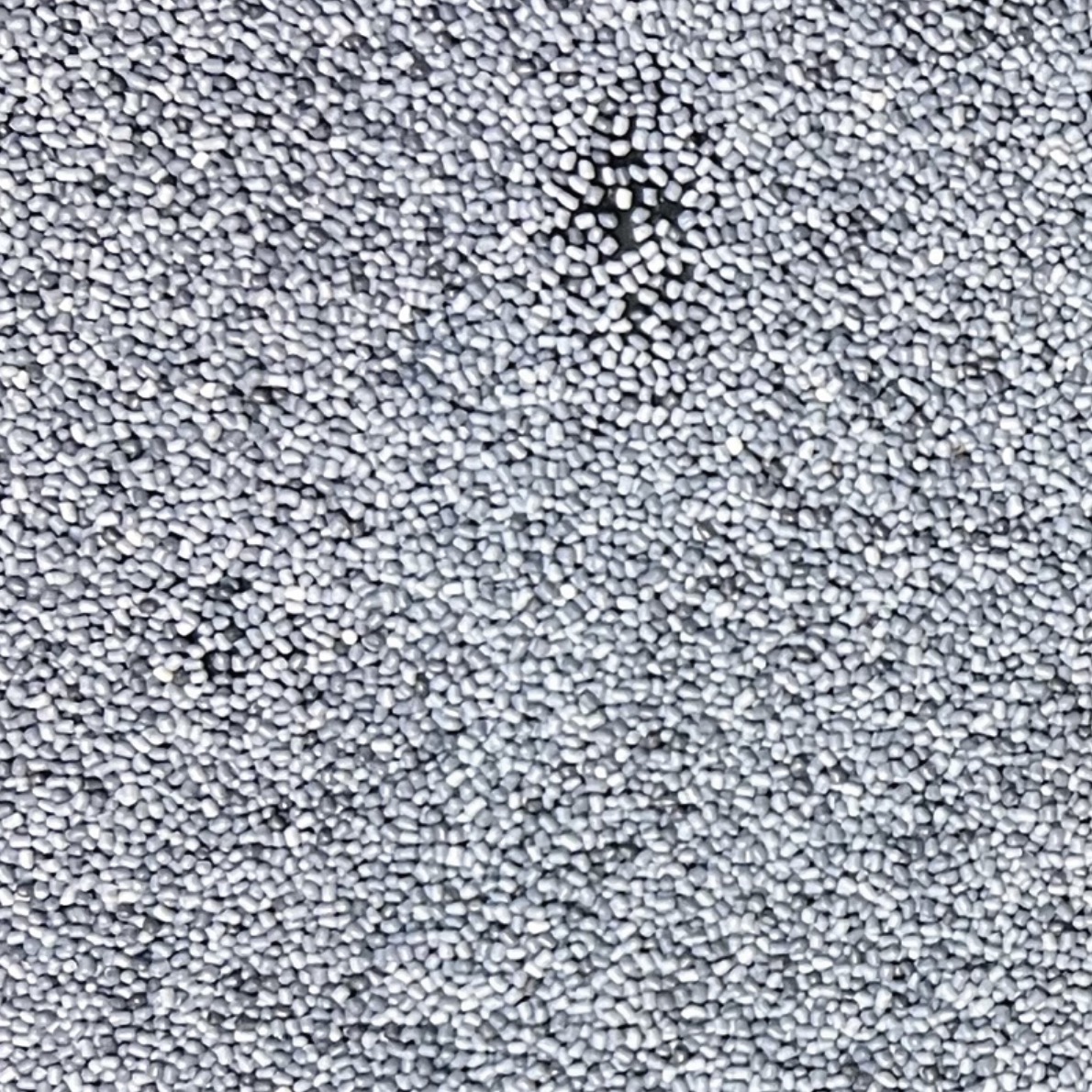

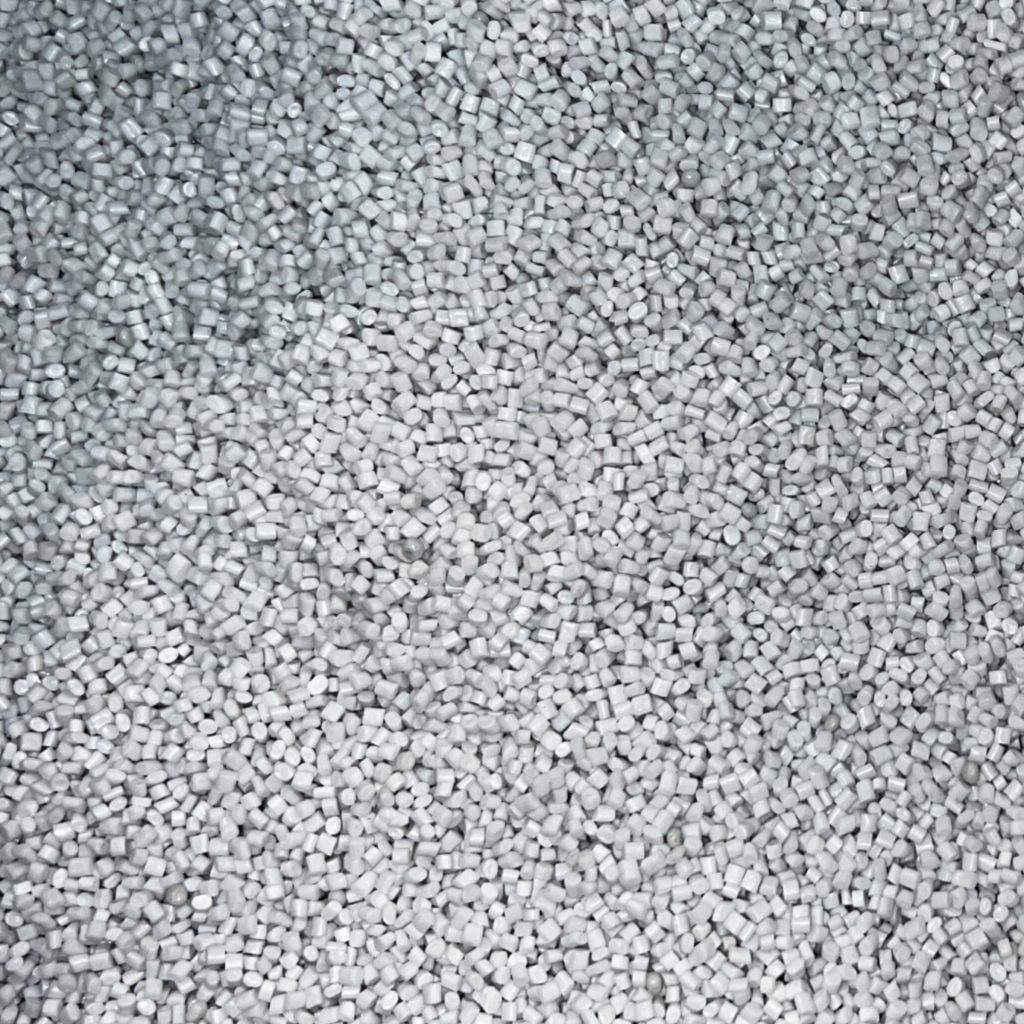

PET Granules Accept

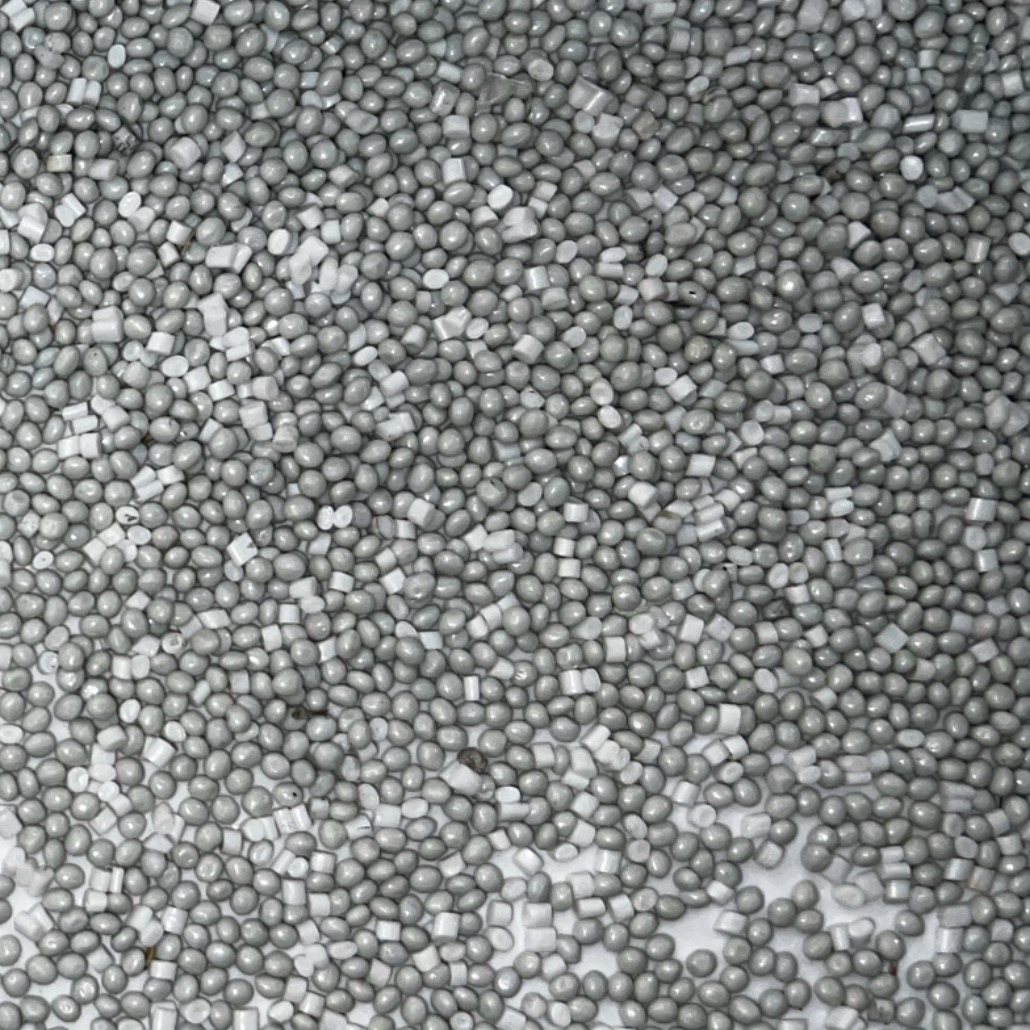

PET Granules Reject

PET Granules Accept

PET Granules Reject

PET Granules 2nd reject

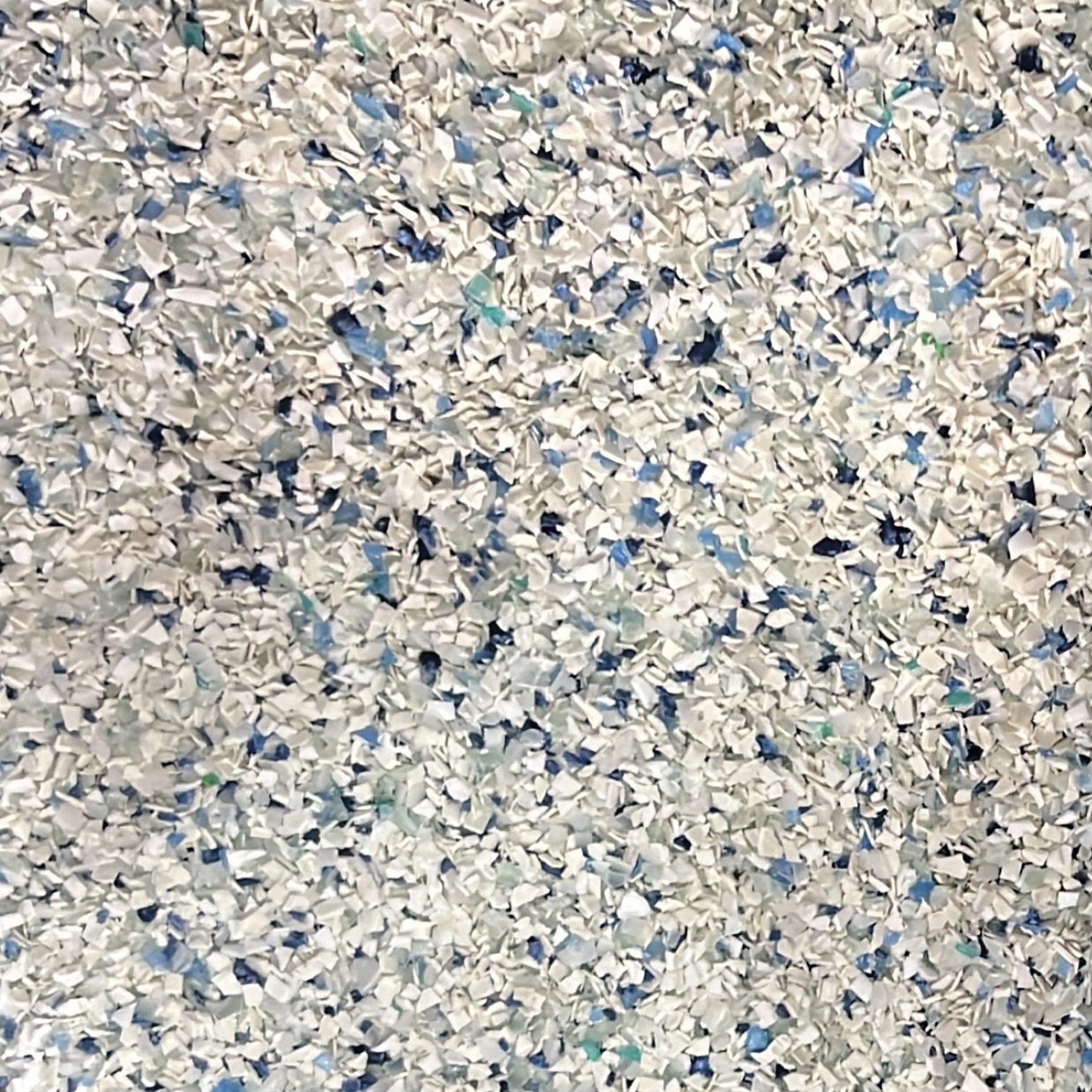

PP Reject

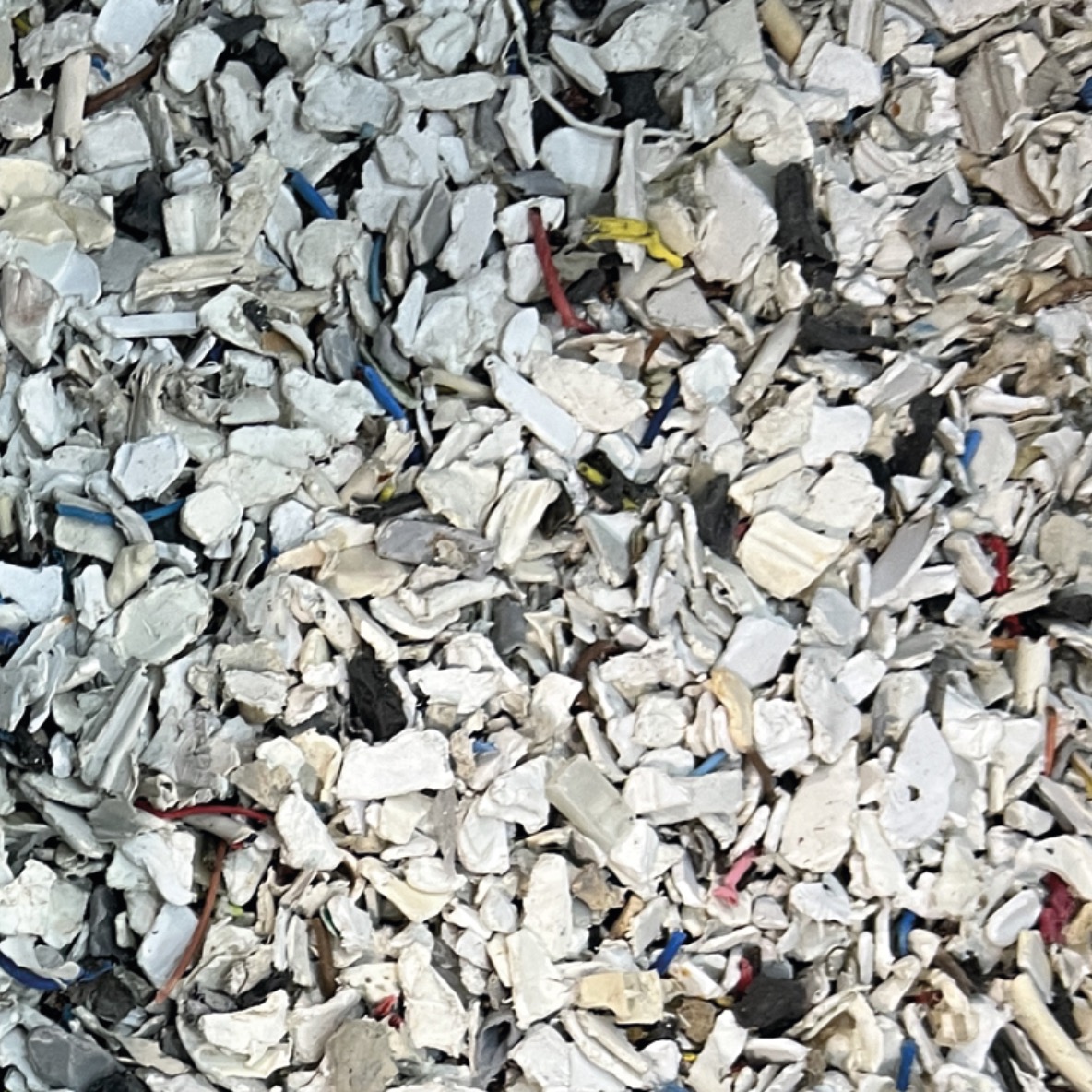

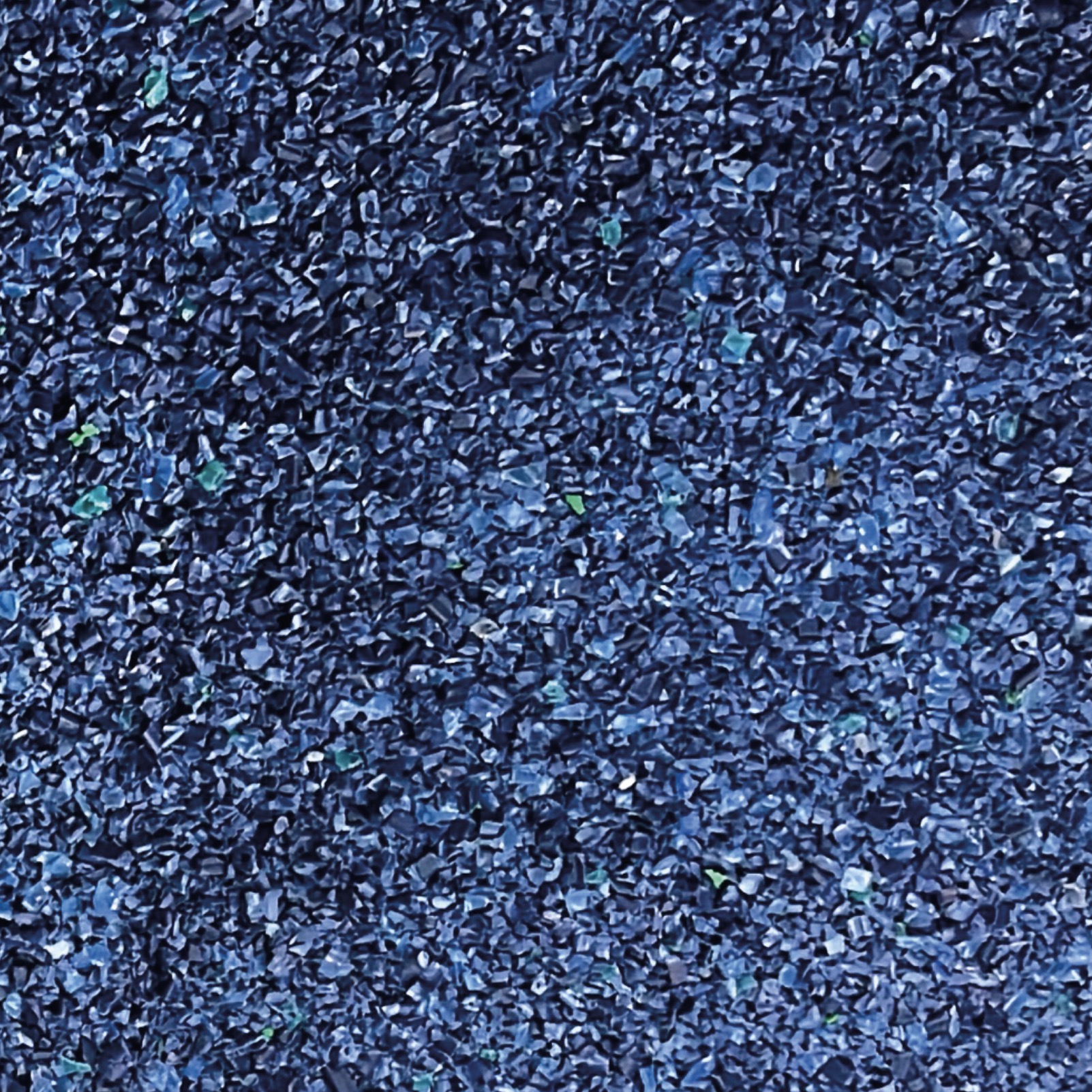

PP Accept

PET Granules Accept

PET Granules Reject

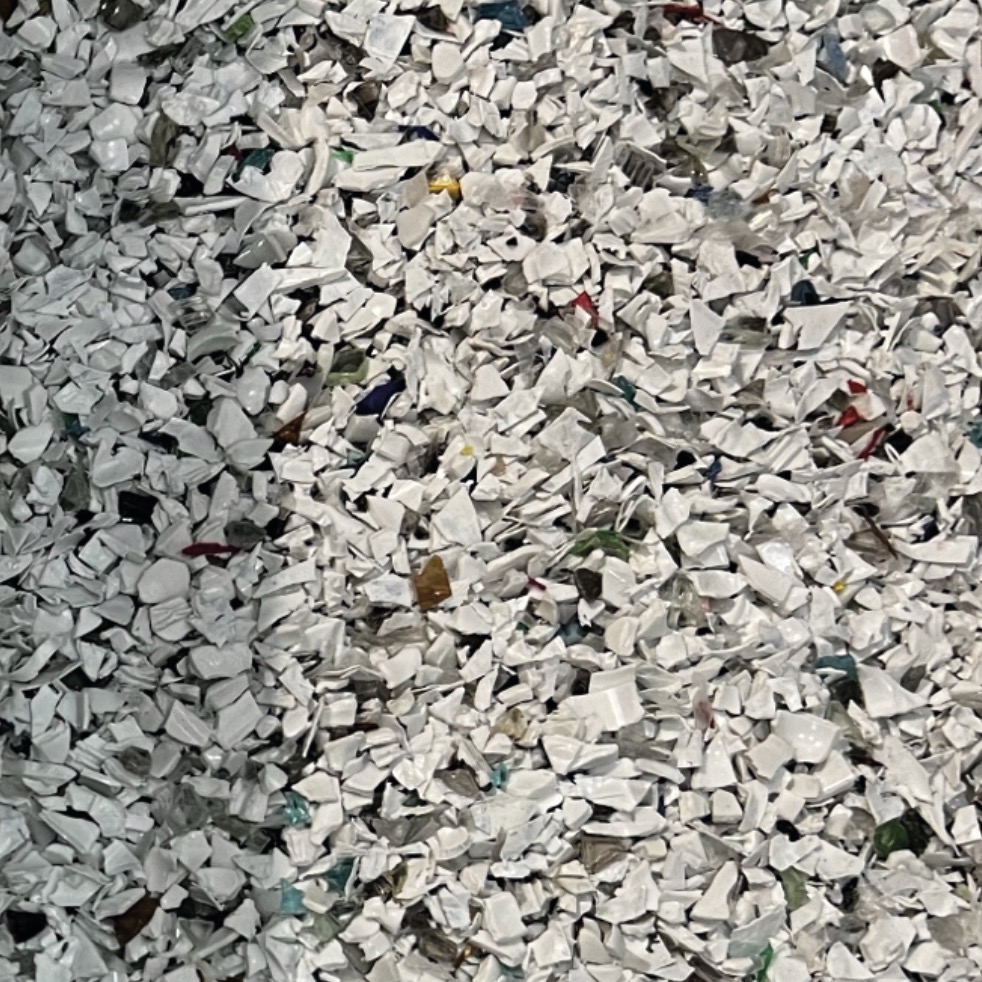

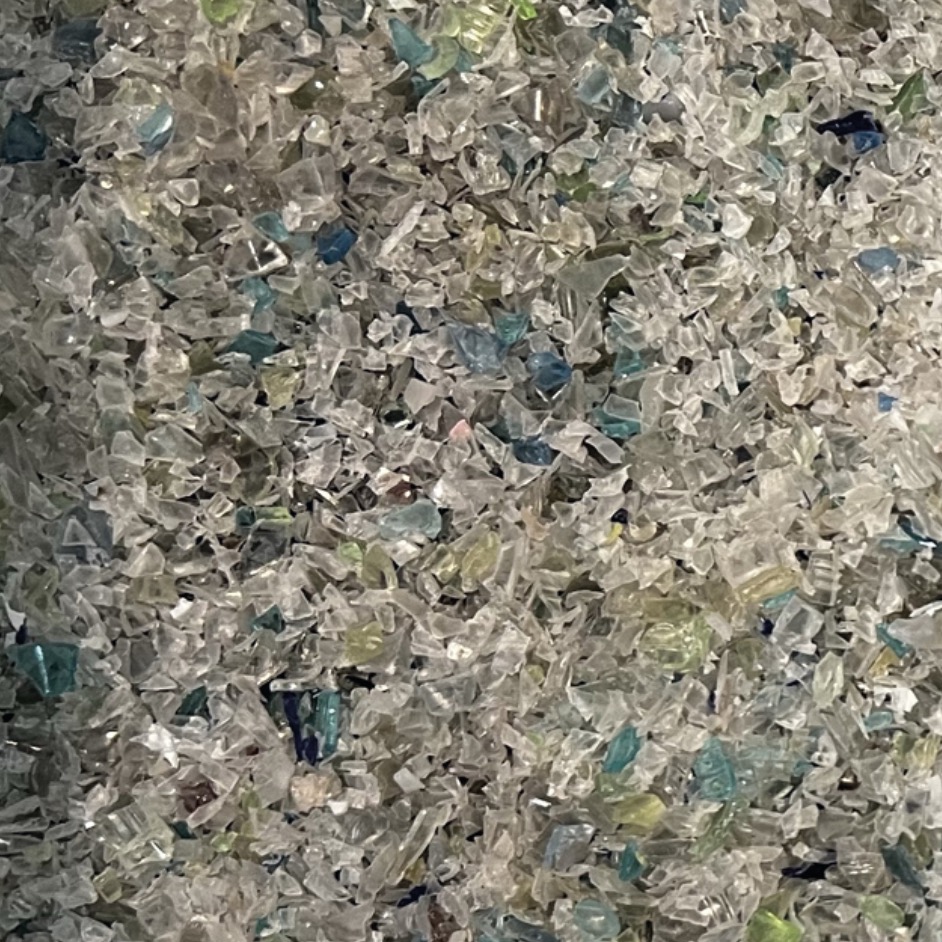

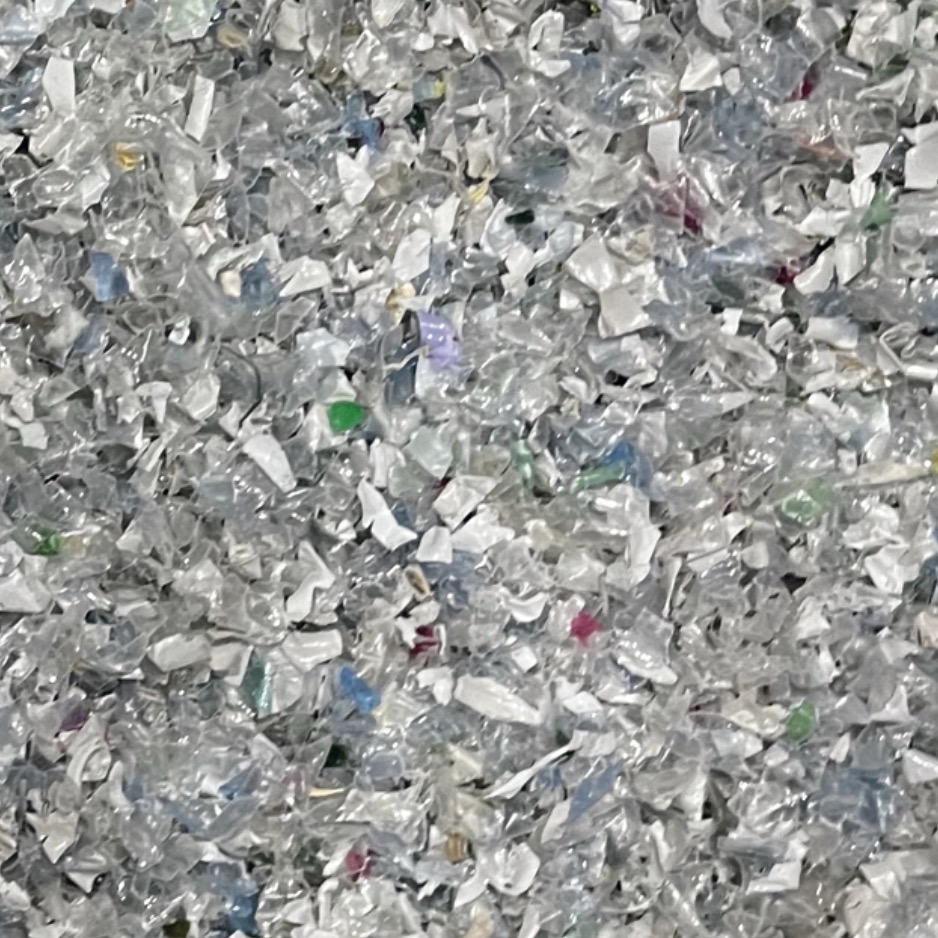

PET Accept

PET Reject

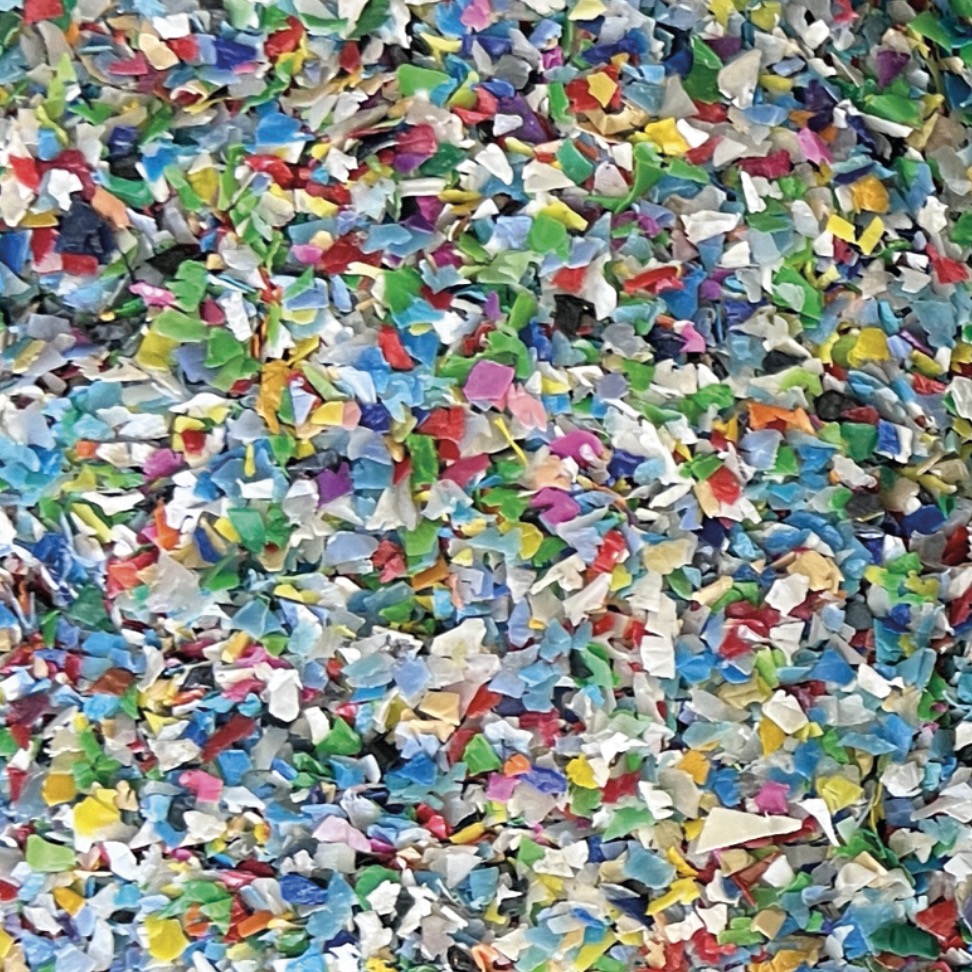

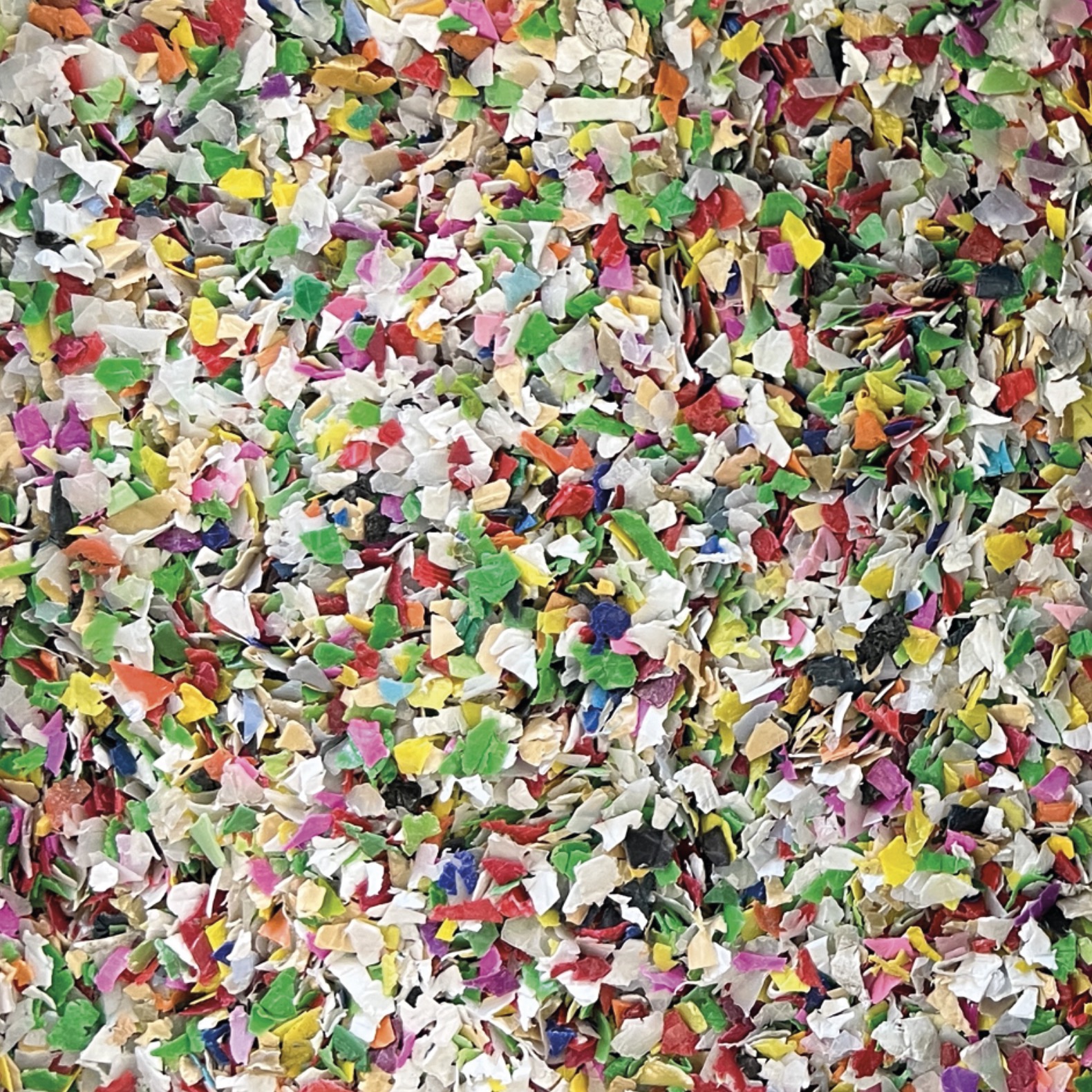

HDPE Accept

HDPE Reject

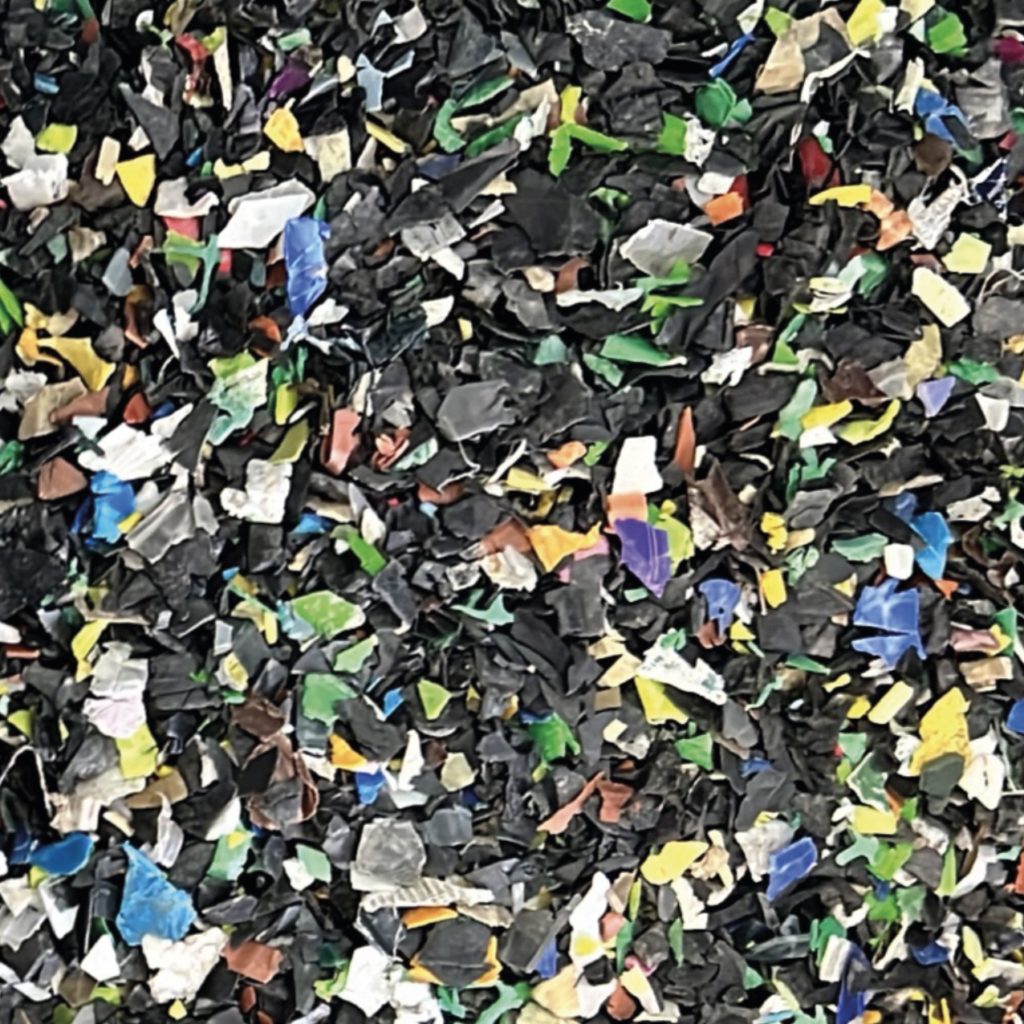

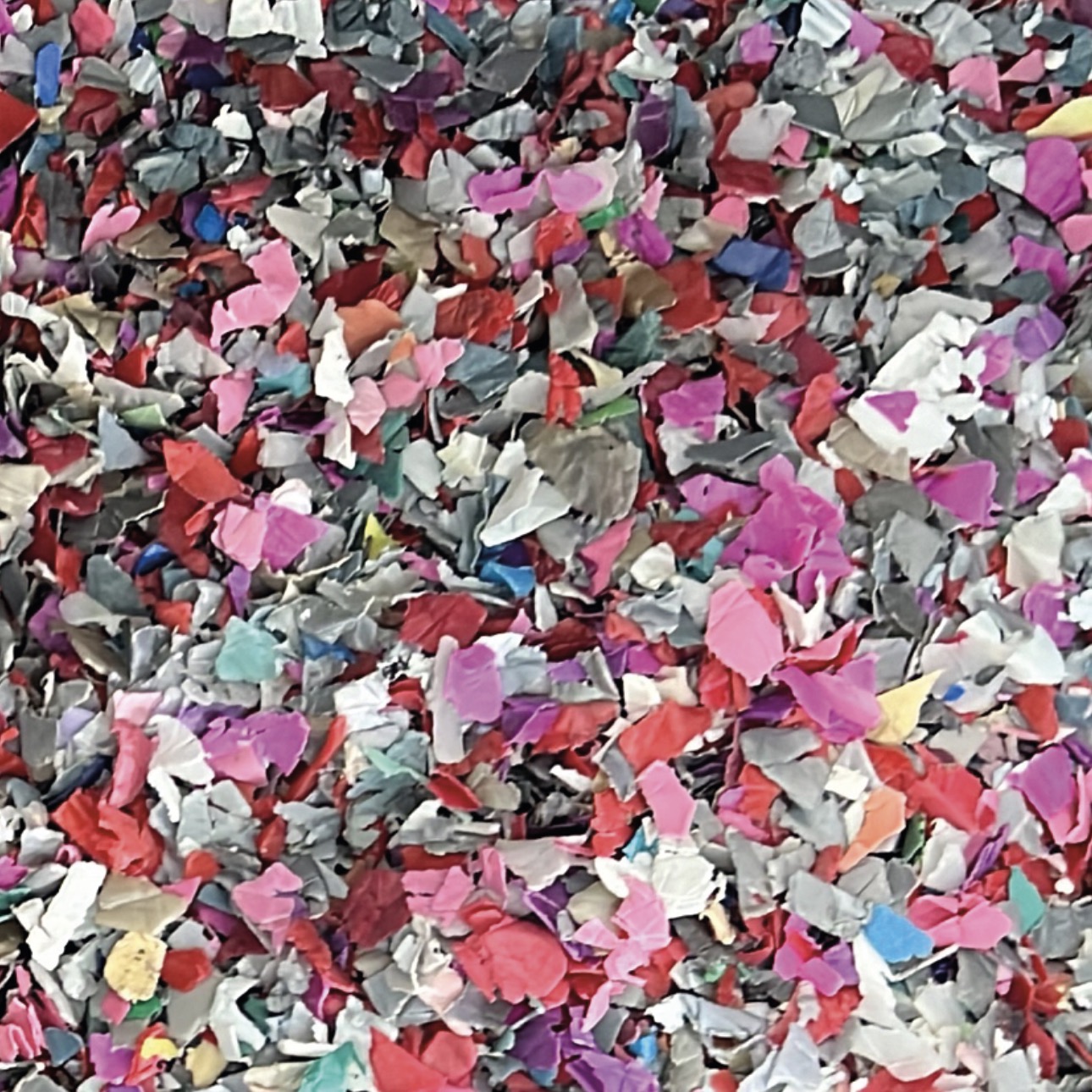

PE Granules Accept

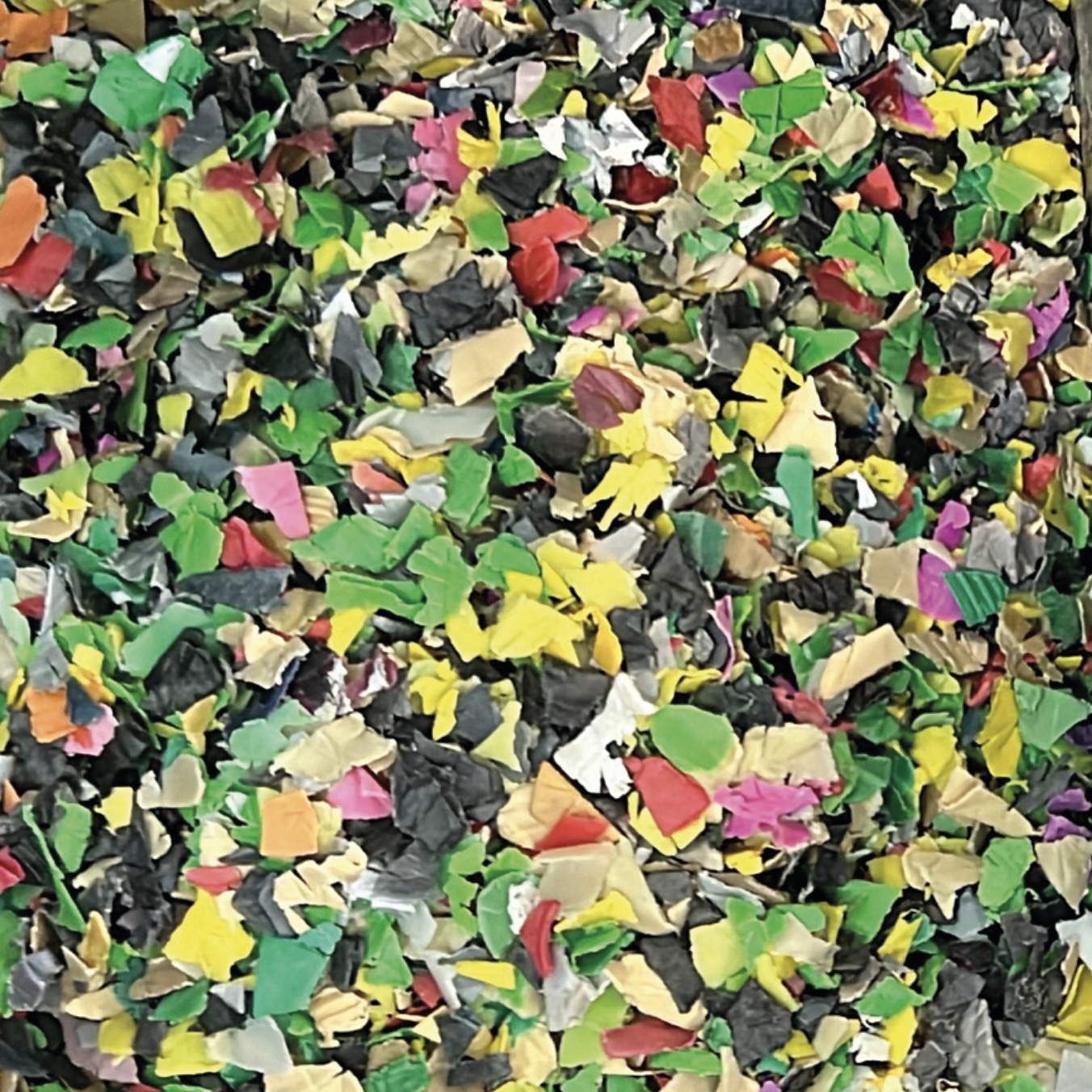

PE Greanules Reject

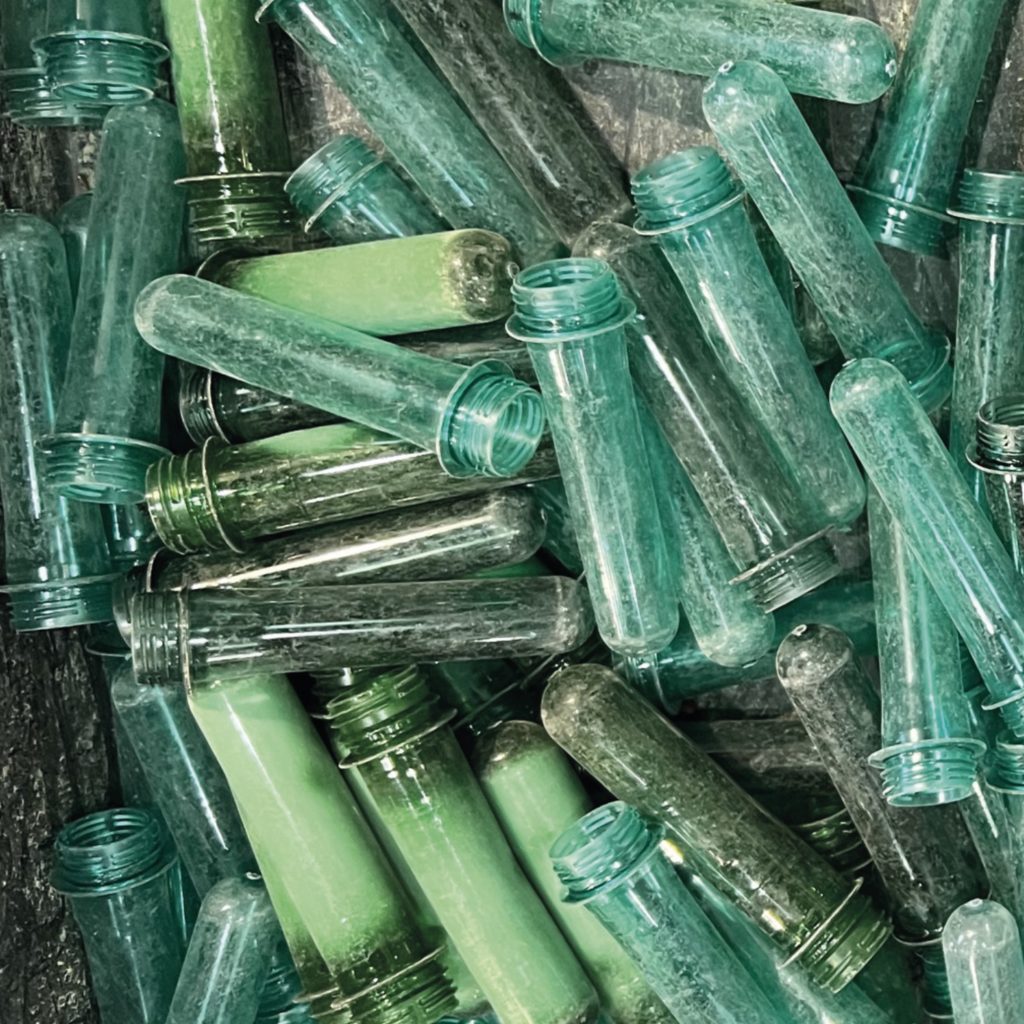

PET Preforms Input

PET Preforms 1st Accept

Preforms 2nd Accept

Preforms 3rd Accept

HDPE Reject

HDPE Accept

PA Accept

PA Reject

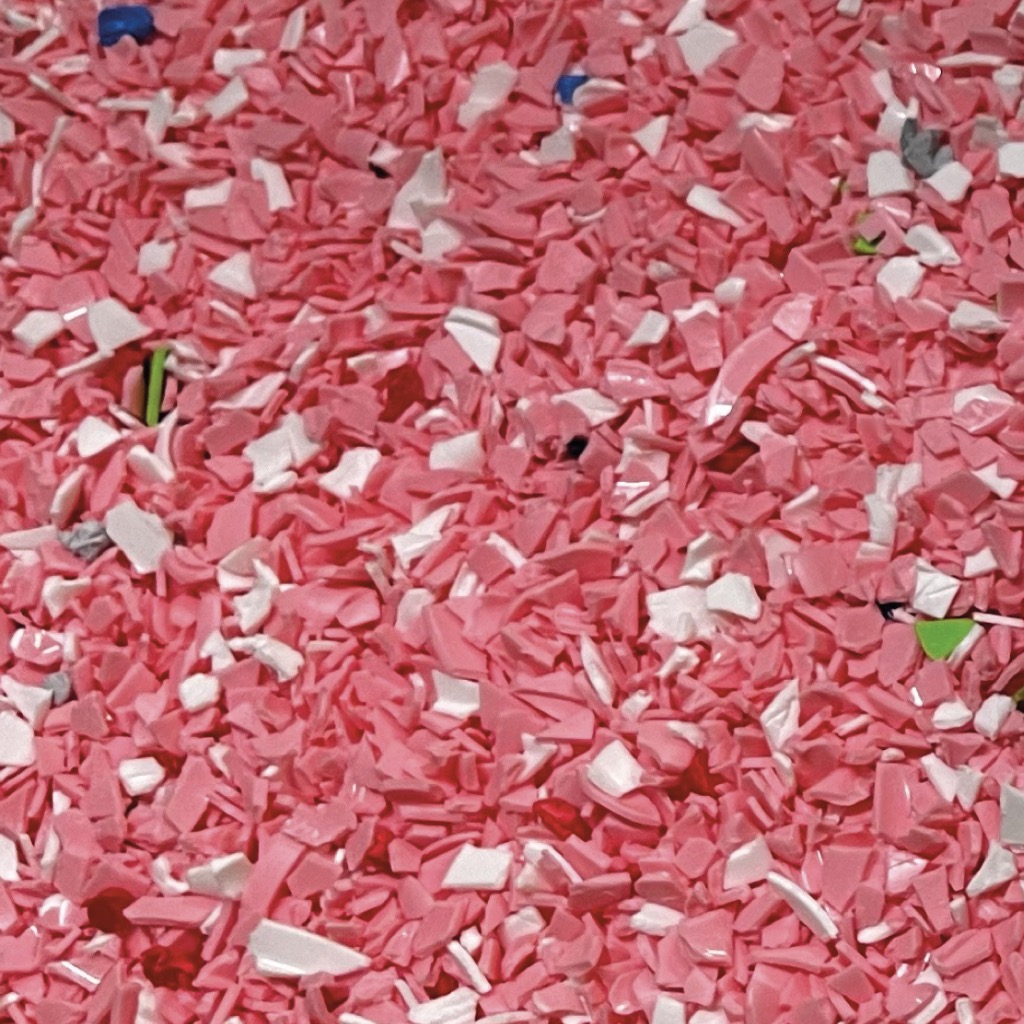

PP 1st Accept

PP Reject

PP Reject

PP Reject

PP Accept

PA Accept

PA Reject

PP Accept

PP Reject

PVC Reject

PP Accept

HDPE Accept

HDPE Reject

HDPE Accept

HDPE Accept

HDPE Reject

HDPE Reject

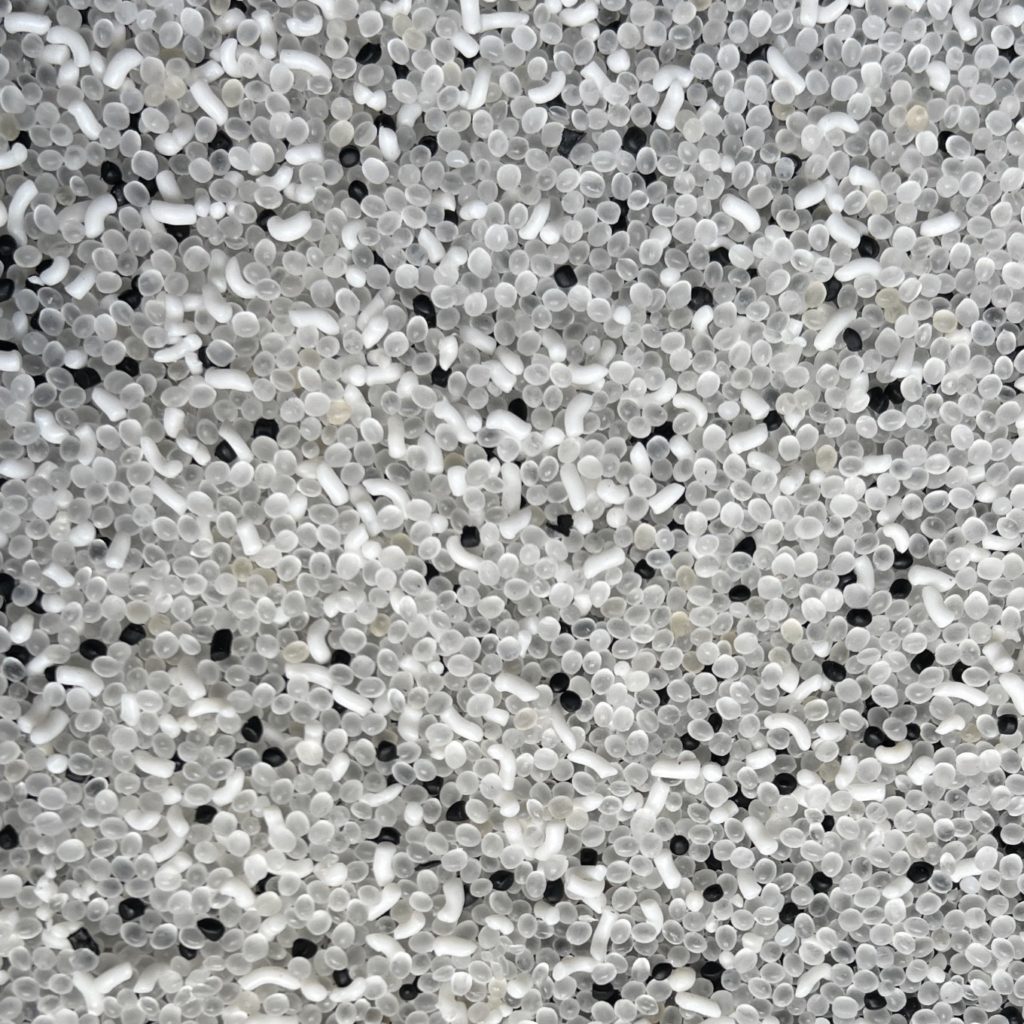

TPE Accept

TPE Reject
